The Marie Curie ResearchTraining Network on Dynamical Arrest

1

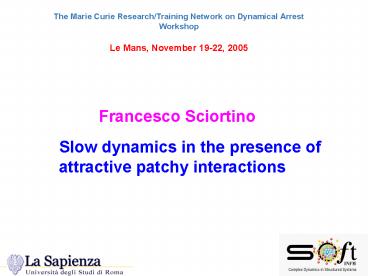

The Marie Curie Research/Training Network on
Dynamical Arrest Workshop Le Mans, November
19-22, 2005
Francesco Sciortino
Slow dynamics in the presence of attractive
patchy interactions
2
Motivations

• The fate of the liquid state. Gels and phase
  separation essential features (Sticky colloids
  - Proteins)
• Revisiting network forming liquids (Silica,
  water.)
• Essential ingredients of strong behavior (A.
  Angell scheme).

3
BMLJ
Liquid-Gas Spinodal
Glass line (D-gt0)
Binary Mixture LJ particles Equilibrium
homogeoues arrested states only for large
packing fraction
4
Gelation as a result of phase separation
(interrupted by the glass transition)
T
T
f
f
5
Foffi aging
G. Foffi, E. Zaccarelli, S. V. Buldyrev, F.
Sciortino, P. Tartaglia Aging in short range
attractive colloids A numerical study J. Chem.
Phys. 120, 1824, 2004
6
Maximum Valency
Geometric Constraint Maximum Valency (E.
Zaccarelli et al, PRL, 2005)
V(r
)
SW if of bonded particles lt Nmax HS if of
bonded particles gt Nmax
r
7
Phase Diagram
NMAX-modified Phase Diagram
8
Nmax4 phase diagram - Isodiffusivity lines
9
The model
J. Kolafa and I. Nezbeda, Mol. Phys. 161 87 (1987)
V(r
)
Hard-Sphere Tetrahedral coordinated SW
r
(bond geometry)
u0
(energy scale)
s
(length scale)
(HS repulsive geometry)
Bonding is properly defined --- Lowest energy
state is well defined
10
Pagan and Gunton JCP (2005)
11
Critical Point of PMW
GC simulation BOX SIZE6s TC0.1095 mC0.0388 fC0
.153
12
Water Phase Diagram
F 0.34
13
Potential Energy for the PMW
Optimal density !
14
Potential Energy -- Approaching the ground state
Progressive increase in packing prevents approach
to the GS
15
Potential Energy along isotherms
Optimal density Hints of a LL CP
16
S(q) in the network region
17
(No Transcript)
18
Diffusion Coefficient
19
D along isotherms
Diffusion Anomalies
20
Isodiffusivities (PWM).
21
Nmax4 phase diagram - Isodiffusivity lines
22
Analogies with other network-forming potentials
ST2 (Poole)
SPC/E
Slower on compression
Faster on compression
BKS silica (Saika-Voivod)
23
Density anomalies
Density Anomalies (and possible 2nd CP)
24
Comments

• Directional interaction and limited valency are
  essential ingredients for offering a new final
  fate to the liquid state and in particular to
  arrested states at low f
• The resulting low T liquid state is (along
  isochores) a strong liquid. Directional bonding
  is essential for being strong.
• Gels and strong liquids are two faces of the same
  medal.
• Percolation and arrest-lines are well separated

25
DNA Gels 1
Colloidal Gels, Molecular Gels, . and DNA gels
Four Arm Ologonucleotide Complexes as precursors
for the generation of supramolecular periodic
assemblies JACS 126, 2050 2004
Palindroms in complementary space
26
The DNA gel model
27
Bonding equilibrium involves a significant change
in entropy (zip-model)
Optimal density
Percolation close to dynamic arrest !
28
D vs (1-pb)
29
D vs (1-pb) --- (MC)
D f04 (Stanley-Teixeira)
30
(No Transcript)
31
Strong-fragile Dire Stretched, Delta Cp
Hard Sphere Colloids model for fragile liquids
32
Basin Free energy
It is possible to calculate exactly the
vibrational entropy of one single bonding
pattern (basin free energy)
(Ladd and Frenkel)
33
Stillinger-Weber
Thermodynamics in the Stillinger-Weber formalism
F(T)-T Sconf(E(T))fbasin(E,T)
with
Fbasin (E)
Sampled Space with E bonds
and
Number of configurations with E bonds
Sconf(E)kBlnW(E)
34

• Comment
• In models for fragile liquids, the number of
  configurations with energy E has been found to be
  gaussian distribute d

Non zero ground state entropy
35
Coworkers
Cristiano De Michele (Event driven code for
PMW) Simone Gabrielli (PMW) Emanuela Zaccarelli
Piero Tartaglia Angel Moreno
(Landscape) Francis Starr (DNA-gels)
36
E vs. 1/T
37
(No Transcript)
38
(No Transcript)
