Pros and Cons of Upper Layer Network Access

1

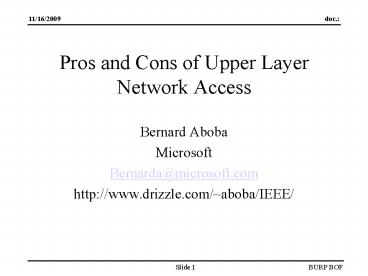

Pros and Cons of Upper Layer Network Access

• Bernard Aboba
• Microsoft
• Bernarda_at_microsoft.com
• http//www.drizzle.com/aboba/IEEE/

2
Agenda

• How do we measure success?
• What do we do today?
• Who standardizes what?
• What have we learned from the past?
• Pros and Cons of Upper Layer Auth
• Summary

3
How Do We Measure Success?

• A network access architecture is successful if
• Users get access quickly. Need to minimize
  round-trips!
• High speed operation is supported
• We will have 1,000 Gbps wired networks by 2008!
• Thats 5 clock cycles _at_ 10 Ghz to process a 64
  octet packet!
• Its simple to develop, understand, operate and
  manage
• We dont get paid by the word for specifications.
• On the Internet, we need to scale to handle
  everyone on (multiple?) planets and their dog,
  watch, car, light bulb, etc.
• Equipment can be manufactured inexpensively
• Cost matters if youre trying to connect
  everything!
• More state, complexity means more hardware,
  higher cost, slower speed so new features need
  to add real value.
• Summary You need to pass the laugh test!

4
Gilders Law vs. Moores Law The Next 20 Years
Storage
Ethernet
1000000
100000
10000
1000
Speed in Gbps
Performance in Gflop/s
Storage in GB
100
10
1
2016
2004
2006
2008
2010
2012
2014
2000
2002
5
What Do We Do Today?

• Today, network access authentication is typically
  done at the link layer
• Authentication takes place at the beginning of
  the session, with periodic re-auth if desired
• Implies that the NAS is one-hop from the client,
  since link layer isnt routable
• Network access is granted on a per-port basis
• NAS can do ingress filtering if desired, but
  usually doesnt
• Virtual ports (VPNs) can provide access control
  by user or machine
• The client and Network Access Server speak the
  link layer protocol over a point-to-point link
• 802.11 shared media converted to point-to-point
  for authentication via the concept of an
  Association (see 802.11 Tge)
• The NAS and AAA server talk AAA protocol, which
  runs over IP
• NAS tells AAA server what kind of access is
  desired (VPN, xDSL, 802.11, etc.) AAA server
  responds with appropriate attributes
• The AAA protocol can tunnel the auth conversation
  (EAP)
• AAA server can be many hops from client
• Does this still make sense? Or has the world
  changed?

6
Who Standardizes What?

• IETF PPP, AAA, MobileIP, etc.
• IEEE
• Open standards body (http//www.ieee.org/)
• Much of the discussion is held on the mail
  reflectors
• Attendance at plenary, interim meetings not
  required
• Documents in process available free for download
• Standards CD-ROM available free to attendees at
  meetings
• Responsible for standardization of IEEE 802
  physical and link layers
• Not just Ethernet or hardware or wired networks!
• Current activities of interest
• Ethernet in the First Mile Study Group
• Ethernet over passive optical and xDSL
• 802.3ae 10 Gigabit Ethernet
• 802.1X network port authentication
• 802.11 PHY MAC for wireless LANs
• TgE security QoS, TgF inter-access point
  protocol
• 802.16 Personal Area Networks (PANs)

7
What Weve Learned

• Network access authentication has already been
  implemented at every layer.
• PHY
• Example 802.11b
• Pros no MAC or TCP/IP changes required (all
  support in firmware)
• Cons requires firmware changes in NICs and NASes
  to support new auth methods, requires NAS to
  understand new auth types, slows delivery of bug
  fixes (e.g. WEP v1.0), hard to integrate into AAA
• MAC
• Examples PPP , 802.1X
• Pros no firmware changes required for new auth
  methods, easier to fix bugs, easy to integrate
  into AAA, no network access needed prior to
  authentication, extensible (RFC 2284)
• Cons requires MAC layer changes unless
  implemented in driver
• IP
• Examples hotel access (based on ICMP re-direct
  to access web server)
• Pros no client MAC or TCP/IP changes required
  (for ICMP re-direct method)
• Cons Doesnt work for all apps, no mutual
  authentication, partial network access required
  prior to auth, need to find access control server
  if not at first hop, typically not extensible
• UDP/TCP
• Examples Proprietary token card protocols
• Pros No client MAC or TCP/IP changes required
  can be implemented purely at the application
  layer
• Cons requires client software, partial network
  access required prior to auth, need to find
  access control server if not at first hop,
  typically not extensible

8
Static vs. Extensible Authentication

• Lesson New authentication methods are constantly
  being developed
• Passwords, public key smartcards, token cards,
  OTP, biometrics, etc.
• If new NAS code is required for each new
  authentication method, new methods will never be
  widely deployed.
• Solution
• Build extensibility into the authentication
  framework support for method negotiation,
  multiple round trips, etc.
• Only require support for new auth methods on
  client and AAA server
• NAS acts as a pass through to enable a
  conversation between the client and AAA server.
• New access methods should support EAP, RFC 2284

9
Why Do Auth at the Link Layer?

• Its fast, simple, and inexpensive
• Most popular link layers support it PPP, IEEE
  802
• Cost matters if youre planning on deploying 1
  million ports!
• Client doesnt need network access to
  authenticate
• No need to resolve names, obtain an IP address
  prior to auth
• NAS devices need minimal layer 3 functionality
• 802.11 access points, 1 Gbps switch ports go for
  300, support 802.1D, 802.1X, SNMP RADIUS, may
  have no layer 3 filtering support
• Authentication, AAA support typically a firmware
  upgrade
• In a multi-protocol world, doing auth at link
  layer enables authorizing all protocols at the
  same time
• Doing it at the network layer would mean adding
  authentication within IPv4, IPv6, AppleTalk, IPX,
  SNA, NetBEUI
• Would also mean authorizing within multiple
  layers
• Result more delay

10
Implications of Link Layer Auth

• Authentication not routable, must occur at edge
• NAS acts as Link-Layer/AAA gateway
• Edge auth more scalable than core auth
• No intrinsic support for fragmentation
• To handle certs you need fragmentation support
• RFC 2284 should have built this in
• Workarounds available (RFC 2716)
• No windowing support (ACK/NAK only)
• Not a big issue unless you have a long exchange
• Need to implement auth for each new link layers
• Question how many new link layers do we need?
  Which ones?

11
Trends

• More of everything (people, addresses, routes,
  hosts, names)
• Faster, faster, faster!
• Mobile Internet Access the Next Big Thing
• IP everywhere!
• Non-IP protocols going away (AppleTalk, IPX,
  NetBEUI, SNA)
• Though multi-protocol still alive (IPv4 IPv6)
• Ethernet everywhere!
• Non-Ethernet LAN protocols going away (FDDI,
  Token Ring, ARCNET)
• Though PPP is alive and well (L2TP PPPOE)
• Support for point to point topologies as well as
  shared media
• Speed increases by an order of magnitude every 3
  years
• Distance limitations removed via fiber optic PHYs
• Ethernet now a LAN, MAN, WAN and even SAN medium
• Some say Ethernet will also replace ATM, Frame
  Relay SONET
• Support for wired as well as wireless (802.11)

12
When Might Layer 3 Auth Make Sense?

• If speed is not a concern filtering consumes
  precious cycles
• If you cant re-use PPP or 802 link layers
• This rules out xDSL, dialup, wired
  LAN/MAN/WAN/SAN, wireless LAN
• Whats left and why?
• If you need to do complex authentication quickly
• Combined auth methods, long cert chains, etc.
• Some thoughts
• Need for new PHY doesnt imply new frame format
• Frame size not a factor at higher speeds
• 802 hard invariants and soft invariants
• Hard non-duplication, sequential delivery
• Soft low error rate, high bandwidth, low delay
• Other need to support multicast/broadcast
  service
• Can be satisfied in a wireless LAN
• Hard ARQ
• Software ARQ/FEC, 100 Kbps bandwidth, 300 ms
  delay

13
Pitfalls of Upper Layer Auth

• Increased cost, decreased performance
• Need to implement layer 3 filtering adds cost
• Sweet spot for NASen implemented purely at layer
  2 (low cost 802.11 APs, 1 Gbps ports, etc.)
• Result is this a high-priced niche solution?
• Finding the access control server, if not at
  first hop
• Do you need to resolve the name? Use Service
  Discovery?
• Service dependencies
• Do you need DHCP? DNS? SLP? Anycast?
• How porous does the filter need to be? What
  attacks do you enable in the process?
• Inflexible and incompatible authentication
• No support for multiple round trips, requiring
  MICs thereby increasing AAA complexity, etc.
• Solution support EAP
• Enforcement in the core
• Beware of state explosion, route changes, etc.
• Security issues
• Increased vulnerability to DoS attacks results
  from partial access

14
Five Questions

• Why do port authentication? Why not machine or
  user authentication?
• Port authentication requires minimal state the
  port is either open or closed.
• Machine auth requires keeping state on which
  machines are authorized (substantial if the port
  connects to a shared medium), as well as
  filtering non-authorized traffic (more CPU
  cycles).
• User auth (distinguishing between users on the
  same machine) is even harder need to track flow
  state, filter non-authorized flows.

15
Five Questions (contd)

• Why do we need a AAA protocol? Why not just
  tunnel the link layer?
• You can tunnel link layer auth EAP
• You can tunnel the entire link layer L2TP
• But AAA isnt just about authentication its
  also about authorization and accounting
• NASes need to authorize services beyond network
  access telnet to a port (substitute for X.25),
  compulsory tunneling, etc.
• Dont necessarily trust client to do its own
  accounting

16
Five Questions (contd)

• Why authenticate and authorize at the edge?
  Wouldnt it be more flexible to do this in the
  core?
• Core auth implies that unauthorized users can
  reach authorized users security risk
• Cant do port authentication in the core one
  port corresponds to many machines. So core auth
  requires more state.
• Routing and MPLS tagging can interact in core
  auth
• Summary Core authentication is more complex,
  costly, insecure

17
Five Questions (contd)

• Why cant we do AAA directly between client and
  server?
• You can authenticate directly, and receive a
  ticket authorizing network access Kerberos
• Requires clients to have (limited) network access
  prior to authenticating
• Need to do name resolution, ICMP, address
  assignment, etc. prior to auth
• Use uncontrolled port with appropriate filters
• However, you may not want to put authentication,
  internal DNS servers on the Internet, open to all
  clients
• May be concerned about DoS implications
• Instead, client and server can talk through a
  gateway
• EAP uses NAS as a gateway
• IAKERB uses IAKERB proxy as a gateway
• Gateways tunnel packets, no need for name
  resolution

18
Five Questions (contd)

• Why is link layer auth easy to integrate with
  AAA? Why has integrating IP layer (or higher)
  auth been so hard?
• Link layer auth has typically kept within the
  existing AAA auth model PAP, CHAP, EAP
• Result no code changes needed to extend AAA to
  VPNs, xDSL, 802, etc., only additional attributes
  or values
• IP-layer auth methods have included per-packet
  integrity and authentication via Message
  Integrity Check (MIC)
• Link layers often assume physical security, but
  IP layer cant do this
• Need to prevent rogue DHCP server from sending
  bad configuration info (could determine boot load
  of diskless clients!)
• Need to prevent rogue MN from registering with
  the HA
• Result AAA server needs to be intimately
  integrated with IP-layer auth method you need an
  extension, not just new attributes or values
• Example AAA for DHCP requires AAA to parse DHCP
  packets, validate and prepare MICs, possibly
  distribute keys
• Cant just support CHAP, or youd be vulnerable
  to attack by rogue servers!

19
Summary

• Network port authentication more scalable than
  machine or user auth
• Edge more scalable than core authentication
• New network access methods should support
  existing AAA auth model (CHAP, EAP)
• DHCP for AAA proposals difficult to integrate
• Link layer authentication likely to remain
  mainstream technique
• Dialup, xDSL, 802, VPN already supported
• Inexpensive, fast NAS devices available
• AAA just works
• Need for Layer 3 auth rests on need for multiple
  new link layers
• If theres a need, it is in wireless WAN
• No need for layer 3 auth in dialup, LAN, xDSL,
  wireless LANs
