Overview of meta-modeling works for multi-clocked environments

1

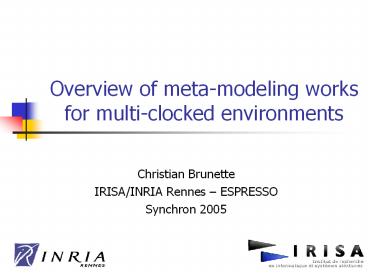

Overview of meta-modeling works for multi-clocked
environments

• Christian Brunette
• IRISA/INRIA Rennes ESPRESSO
• Synchron 2005

2
Motivations

• Generalize the use of Polychrony
• SystemC ? SSA ? Signal
• Be able to operate in popular frameworks
• ? Metamodeling approach
• OPENEMBEDD TOPCASED projects
• Definition of a UML profile for real-time and
  embedded systems (MARTE)
• Develop a front-end for different multi-clocked
  environments

3
Outline

• What is GME ?
• Signal-Meta
• A new front-end for Polychrony
• Some extensions
• And then

4
Generic Modeling Environment

• Configurable UML toolkit that supports the
  creation of
• domain-specific modeling
• program synthesis environments
• Free and Open-Source
• Defines modeling paradigms as metamodels
• Describes concepts and relations in UML-like
  class diagrams

5
Generic Modeling Environment

• MetaGME modeling paradigm for specifying
  metamodels
• Offers specific stereotypes FCO, Atom, Model,
  Reference
• Relation containment, inheritance (classical and
  interface/implementation), Connection classes
• Offers a separation of concerns concept
  (Aspect) specify visibility way to use FCO
• OCL constraints OCL functions

6
GME tools

• MetaGME interpeter
• OCL constraint checker
• Plug-in generator
• COM language
• Builder Object Network (BON) API

7
Outline

• What is GME ?
• Signal-Meta
• A new front-end for Polychrony
• Some extensions
• And then

8
1st version
9
1st version example
started sec go
started true when go default
started
count (count) 1 when started
10
Signal-Meta

• Meta-model close to SIGNAL grammar v4
• An Atom per SIGNAL operator (arithmetic, boolean,
  clock relation, scheduling,)
• An Atom for signal/constant declaration
• A Model for process declaration, module, type
  declaration, sub-process, iteration
• A Reference per process instantiation, for
  signals
• 3 Aspects interface, dataflow, and clock
  relations

11
A Signal-Meta paradigm sheet
12
Example of modeling watchdog
Dataflow Aspect
Clock relations Aspects
13
Outline

• What is GME ?
• Signal-Meta
• A new front-end for Polychrony
• Some extensions
• And then

14
Interpreter

• Instantiation of graphical objects into BON2
  objects
• Check build SIGNAL equations
• Write into files

15
Interpreter

• Build equations by recursive analysis on FCOs
• Start/End on end-statements (signals,
  constants,)
• Checked
• Signal/constant references
• Validity of FCO attribute values
• Detect cyclic definition
• Not checked
• Type
• Clock constraints

16
Outline

• What is GME ?
• Signal-Meta
• A new front-end for Polychrony
• Some extensions
• And then

17
Mode Automata

• States contains SIGNAL equations
• Only weak preemption for transitions
• Priority attribute of transitions ? determinism
• INRIA RR-5728

18
MIMAD

• Model for Integrated Modular Avionics Design
• Models for IMA systems, modules, partitions, and
  processes (standard ARINC653)
• Describe mainly IMA Process and Module levels
• References for Blocks (APEX services)
• User-defined services described in SIGNAL
• Represents scheduling of blocks as a mode
  automaton
• Extension of the Signal-Meta Interpreter
• INRIA RR-5715

19
Signal-Meta on Eclipse

• Use ATL (ATLAS Transformation Language)
• Transformation of
• MetaGME ? AMMA (EMF)
• AMMA ? EMF
• Current problem lost graphical information
• Bridging the Generic Modeling Environment and the
  Eclipse Modeling Framework, 4th workshop of Best
  Practice for MDSD, OOPSLA 2005.

20
Outline

• What is GME ?
• Signal-Meta
• A new front-end for Polychrony
• Some extensions
• And then

21
Conclusions

• A new front-end for Polychrony
• Modeling
• Code generation
• Foundation for several multi-clock modeling
  paradigms
• Signal-Meta will be available on Eclipse
• Too few interactivity during the modeling no
  type or clock constraint checking

22
Future works

• Polychrony as a GME Addon
• Check dynamically types and clock constraints
• Interactivity during modeling
• Integration in OPENEMBEDD and/or TOPCASED
  platform
• Improvement of transformations
• MetaGME ?? EMF
