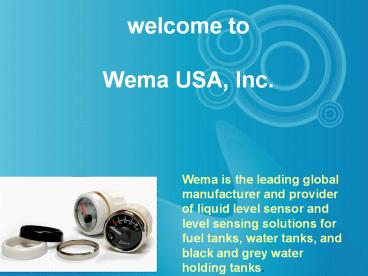

welcome to Wema USA, Inc.
Wema is the leading global manufacturer and
provider of liquid level sensor and level sensing
solutions for fuel tanks, water tanks, and black
and grey water holding tanks.
2
Liquid Level Sensors
Material SUS 316 Stainless Steel Length
Available 4" through 18.5" at 0.5"
increments Available 19" through 60" at 1"
increments Mounting Methods Standard SAE 5
hole pattern Protection Rank IP67 Output
Signal Standard American 240-33 ohms. European
standard (0-180 ohms) and special customization
available upon request Resolution Range
10-40mm Operational Temperature -40F
185F (-40C 85C) Special Applications
For Dual Stations, special ohm ranges, custom
calibration or special application unit, please
contact us at info_at_wemausa.com
3
Liquid Sensor
Material SUS 316 Stainless Steel Length
Available 4" through 60" at 1"
increments Mounting Methods European 1.25"BSP
Thread Protection Rank IP67 Output Signal
Standard American 240-33 ohms. Other ohmn ranges
and special customization available upon
request Resolution Range 10-40mm Operational
Temperature -40F 185F (-40C
85C) Special Applications For Dual Stations,
special ohm ranges, custom calibratation or
special application unit, please contact us at
info_at_wemausa.com
4
Tank Level Sensor
Material SUS 316 Stainless Steel Length
Available 4" through 60" at 1"
increments Mounting Methods NPT 1.5"
Thread Protection Rank IP67 Output Signal
Standard American 240-33 ohms. Other ohm ranges
and special customization available upon
request Resolution Range 10-40mm Operational
Temperature -40F 185F (-40C
85C) Special Applications For Dual Stations,
special ohm ranges, custom calibration or special
application unit, please contact us at
info_at_wemausa.com
5
Contact Us
Wema USA, Inc. 15 NE 3rd StreetFort
Lauderdale, FL 33301 Local  954-463-1075 Fax
  954-463-1270Office HoursMonday -
Friday830am - 500 pm EST http//www.wemausa.c
