Mitutoyo Laser Scan

1

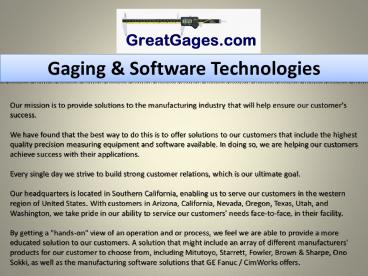

Gaging Software Technologies

• Our mission is to provide solutions to the
  manufacturing industry that will help ensure our
  customer's success.We have found that the best
  way to do this is to offer solutions to our
  customers that include the highest quality
  precision measuring equipment and software
  available. In doing so, we are helping our
  customers achieve success with their
  applications.Every single day we strive to
  build strong customer relations, which is our
  ultimate goal.Our headquarters is located in
  Southern California, enabling us to serve our
  customers in the western region of United States.
  With customers in Arizona, California, Nevada,
  Oregon, Texas, Utah, and Washington, we take
  pride in our ability to service our customers'
  needs face-to-face, in their facility.By
  getting a "hands-on" view of an operation and or
  process, we feel we are able to provide a more
  educated solution to our customers. A solution
  that might include an array of different
  manufacturers' products for our customer to
  choose from, including Mitutoyo, Starrett,
  Fowler, Brown Sharpe, Ono Sokki, as well as the
  manufacturing software solutions that GE Fanuc /
  CimWorks offers.

2
CMM Ruby Styli Stylus Extensions

• CMM Styli
• These are suitable for the majority of probing
  applications.They incorporate highly spherical
  industrial ruby balls. Ruby is an extremely hard
  ceramic material and hence wear of stylus balls
  is minimised. It is also of low density keeping
  tip mass to a minimum which avoids unwanted probe
  triggers caused by machine motion or vibration.
• Ruby balls are available mounted on a variety of
  materials including non-magnetic stainless steel,
  ceramic and carbide, to maintain stiffness over
  the total range of styli.

3
Star CMM StyliThese can be used to inspect a
variety of different features.Using star styli
to inspect the extreme points of internal
features such as the sides or grooves in a bore,
minimises the need to move the probe, due to
their multi-tip probing capability.Each tip on a
star stylus requires datuming in the same manner
as a single ball stylus.Star styli are not
recommended for use on machine tools.
CMM Stylus Extensions These extensions provide
added probing penetration by extending the stylus
away from the probe. Available in both Stainless
Steel and ceramic bodies.
4
Contact Gaging Software Technologies, Inc. via
phone, fax, or email

• Gaging Software Technologies, Inc.18337
  Hollowtree LaneRiverside CA 92504
• Phone [phone]Internet and general customer
  service questions and support is available Monday
  thru Friday, 8am - 6pm PT.
• Fax [phone]
• Email sales_at_GreatGages.com
• http//www.greatgages.com/
