U-BATH OUTDOOR SPA SOLUTIONS

1

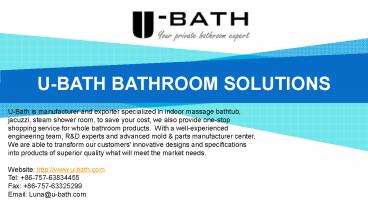

U-BATH BATHROOM SOLUTIONS
U-Bath is manufacturer and exporter specialized
in indoor massage bathtub, jacuzzi, steam shower
room, to save your cost, we also provide one-stop
shopping service for whole bathroom products.
With a well-experienced engineering team, RD
experts and advanced mold parts manufacturer
center. We are able to transform our customers'
innovative designs and specifications into
products of superior quality what will meet the
market needs. Website http//www.u-bath.com Tel
86-757-63834455 Fax [phone] Email
Luna_at_u-bath.com
2
Our Showroom And Factory
SHOWROOM
PACKING
OFFICE BUILDING
FOSHAN FACTORY
3
Serious Working Time
4
Attention to details!
5
Attention to details!
6
Quality Certificates
7
Project Cases
We have cooperated with 50 countries projects,
below please find some of our cases
QATAR HILTON GARDEN HOTEL
EGYPT DIAMOND PLAZA BARON HOTEL
8
SAUDI ARABIA GOLDEN TULIP, CORAL HOTEL,
SWCC-KHOBAR HOUSING KH etc.
9
UB3007
Dimensions 2050x1300x700mm
Seating capacity 2-3 persons
Net weight 210KG
Packaging 2200x740x1330mm
20FT container 12pcs
40HQ container 27pcs
Electricity supply 220V/50-60Hz or 380V/50-60Hz
Total power 5.63kw
Maximum current 25.56A
Hydromassage jet(stainless steel) 35pcs
Circulation pump 1x0.5HP
Hydro massage pump 1x3HP
Ozonator 50mg/h
LED optic light (multi coloured) 8pcs
Bottom LED light 2.5"x1pc
Balboa control system with 3KW heater 1set
Control panel 1set
Skimmer filter house with one paper filter 1set
Acrylic shell 1pc (Aristech acrylic)
PS synthetic cabinet 1set
High density foam insulation (spa body) 1pc
Foil insulation on cabinet 1set
Side drainage valve 1pc
Pillow 3pcs(EVA pop up pillow)
Spa cover 1pc(3 folds)
FRP base 1set
10
UB3033
Dimensions 20001600920mm
Seating capacity 3 persons
Net weight 280KG
Packaging 16509502150mm
20FT container 7pcs
40HQ container 14pcs
Electricity supply 220V/50-60Hz or 380V/50-60Hz
Total power 6.78kw
Maximum current 30.79A
Hydromassage jet(stainless steel) 48pcs
Air jet(with LED lights) 8pcs
Circulation pump 1x0.5HP
Hydro massage pump 2x2HP
Air blower 1x400W
Ozonator 50mg/h
LED optic light (multi coloured) 26pcs
Balboa control system with 3KW heater(GS510SZ VL701S) 1set
Control panel 1set
Mushroom fountain 1pc(with LED light)
cartridge filter house with one paper filter 1set
Acrylic shell 1pc(Aristech acrylic)
PS synthetic cabinet 1set
High density foam insulation 1pc(spa body)
High density foil insulation 1pc(cabinet)
Side drainage valve 1pc
Pillow 2pcs(with LED lights)
Spa cover 1pc
Standard step 1pc
FRP base plate 1pc
11
UB3004
Dimensions 2100x1600x800mm
Seating capacity 2 persons
Net weight 260KG
Packaging 1650x850x2150mm
20FT container 7pcs
40HQ container 14pcs
Electricity supply 220V/50-60Hz or 380V/50-60Hz
Total power 6.03kw
Maximum current 27.38A
Hydromassage jet(Stainless steel) 34pcs
Air jet(Stainless steel) 8pcs
Circulation pump 1x0.5HP
Hydro massage pump 1x3HP
Air blower 1x400W
Ozonator 50mg/h
LED optic light (multi coloured) 18pcs
Balboa control system with 3KW heater 1set
Control panel 1set
Cartridge filter house with one paper filter 1set
Acrylic shell 1pc (Aristech acrylic)
PS synthetic cabinet 1set
High density foam insulation (spa body) 1pc
High density foil insulation (cabinet) 1pc
Side drainage valve 1pc
Pillow 2pcs(with LED lights)
Spa cover 1pc
Standard step 1pc
FRP base plate 1pc
12
UB3008
Dimensions 1900x1600x 810mm
Seating capacity 4-5 persons
Net weight 300KG
Packaging 1930x1630x830mm
20FT container 7pcs
40HQ container 21pcs
Electricity supply 220V/50-60Hz or 380V/50-60Hz
Total power 5.6kw
Maximum current 25.3A
Hydromassage jet(stainless steel) 45pcs of 2'' (3pcs used for waterfall)
Hydromassage jet(stainless steel) 5pcs of 3.5''
Circulation pump 1x0.5HP
Hydro massage pump 1x3HP
Ozonator 50mg/h
LED optic light (multi coloured) 10pcs
Bottom LED light 2.5"x1pc
Balboa control system with 3KW heater 1set
Control panel 1set
Skimmer filter house with one paper filter 1set
Acrylic shell 1pc (Aristech acrylic)
PS synthetic cabinet 1set
High density foam insulation (spa body) 1pc
Foil insulation on cabinet 1set
Side and corner drainage valve 1pc
Pillow 4pcs
Spa cover 1pc
FRP base 1set
13
UB3002
Dimensions 2100x2100x920mm
Seating capacity 6 persons
Net weight 365kgs
Packaging 21509502260mm
20FT container 5pcs
40HQ container 12pcs
Electricity supply 220V/50-60Hz or 380V/50-60Hz
Total power 6.3kw
Maximum current 28.6A
Hydromassage jet(Stainless steel) 48pcs
Air jet(Stainless steel) 16pcs
Circulation pump 1x0.5HP
Hydro massage pump 2x2HP
Air blower 1x700W
Ozonator 50mg/h
LED optic light (multi coloured) 17pcs
Balboa control system with 3KW heater 1set
Control panel 1set
Cartridge filter house with one paper filter 1set
Acrylic shell 1pc (Aristech acrylic)
PS synthetic cabinet 1set
High density foam insulation (spa body) 1pc
High density foil insulation (cabinet) 1pc
Side drainage valve 1pc
Pillow 3pcs(with LED lights)
Spa cover 1pc
Standard step 1pc
FRP base plate 1pc
14
UB3035
Dimensions 22002200970mm
Seating capacity 7 persons
Net weight 350KG
Packaging 22509002360mm
20FT container 5pcs
40HQ container 12pcs
Electricity supply 220V/50-60Hz or 380V/50-60Hz
Total power 6.8kw
Maximum current 31A
Hydromassage jet(stainless steel) 47pcs
Air jet(Stainless steel) 12pcs
Circulation pump 1x0.5HP
Hydro massage pump 2x2HP
Air blower 1x400W
Ozonator 50mg/h
LED optic light (multi coloured) 27pcs
Balboa control system with 3KW heater(GS510SZ VL701S) 1set
Control panel 1set
cartridge filter house with one paper filter 1set
Acrylic shell 1pc(Aristech acrylic)
PS synthetic cabinet 1set
High density foam insulation 1pc(spa body)
High density foil insulation 1pc(cabinet)
Side drainage valve 2pcs
Pillow 4pcs(with LED lights)
Grating 1set
Spa cover 1pc
Standard step 1pc
FRP base plate 1pc
It can be installed into ground if you want!
15
UB3046
Dimensions 23002300970mm
Seating capacity 5 persons
Net weight
Packaging 23509802410mm
20FT container 4pcs
40HQ container 12pcs
Electricity supply 220V/50-60Hz or 380V/50-60Hz
Total power 10.83KW
Maximum current 49.20A
Hydromassage jet(stainless steel) 130pcs
Air jet(with LED lights) 16pcs
Circulation pump 1x0.5HP
Hydro massage pump 3x3HP
Air blower 1x700W
Ozonator 50mg/h
LED optic light (multi coloured) 40pcs
Balboa control system with 3KW heater(GS523DZ VL801D) 1set
Control panel 1set
cartridge filter house with one paper filter 1set
Acrylic shell 1pc(Aristech acrylic)
PS synthetic cabinet 1set
High density foam insulation 1pc(spa body)
High density foil insulation 1pc(cabinet)
Corner drainage valve 1pc
Pillow 4pcs(with LED lights)
Spa cover 1pc
Standard step 1pc
FRP base plate 1pc
2 pcs of loungers and 4 pcs of seats with
abundant massage jets and entertainment LED
lights, Air bubbles with LED lights The best
choice for luxury projets.
16
Standard Equipments
17
Standard Equipments
18
Optional color
Aristech Acrylic is the proud recipient of
Jacuzzis 2015 Operational Excellence Award for
Quality and Service.
04
??
19
Options
U-Bath jacuzzi is already installed with abundant
luxury equipments, if you have any other idea to
make your jacuzzi more fantastic, please dont
hesitate to let us know, well try our best to
make it for you.
20
Your Best Decisions Start From Here!
Luna Liu
Tel [phone]
Mobile [phone]
Whatsapp/ Wechat/ Viber
Email LUNA_at_U-BATH.COM
Website www.u-bath.com
