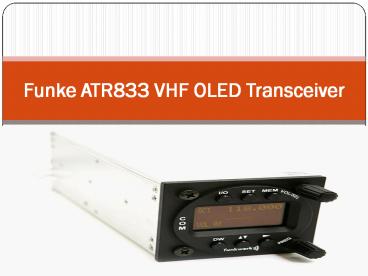

Funke ATR833 VHF OLED Transceiver

1
Funke ATR833 VHF OLED Transceiver
2

• The Funke ATR833 OLED is a complete solution for
  radios in small aircraft with the new channel
  separation of 8.33 kHz. The channel spacing can
  be switched between 25kHz and 8,33kHz.

3

• The built-in vox controlled intercom operates up
  to 4 microphones (2 standard, 2 dynamic). In many
  cases no extra intercom is required. This saves
  cost and weight. All headsets are separately
  adjustable. Using similar headsets a 4-place
  intercom can be built-up.

4

• In addition to the standard functions there are 2
  memories available. All frequencies of European
  airfields are preprogrammed and can be easily
  updated. More the user can define up to 100 named
  frequencies to build up an own database. All
  stored frequencies can be searched by name.

5

• 760/2280 channel VHF Transceiver
• Easy operation with 4 line OLED display
• Built-in VOX intercom
• Supports Standard or dynamic microphones
• 100 quick-select frequency memories
• Full 6W carrier output

6
(No Transcript)
7

• 25KHz/8.33KHz channel spacing
• European frequency database
• Compact size - fits into 2.25" (57mm) instrument
  hole
• Weighs only 700g
• Auto TX cut-out after 2 minutes
• 14v operation
• Dual channel monitoring

8
Technical Data

• Frequency range 118.000MHz .... 136.975 MHz
• Channel Spacing 8.33 kHz
• HF output power approx 6W
• NF output power approx 4W

9

• Dimensions 57mm hole in panel length 178mm
  (without connector)
• Weight approx 700 g

10

• Power consumption approx 120mA standby 1.8A
  during transmission
• Power Supply 10.5V 14V
• Supplied with connector
