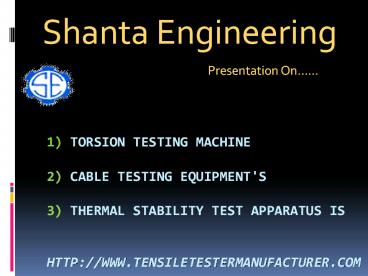

1) Torsion Testing Machine2) Cable Testing
Equipment's 3) Thermal Stability Test Apparatus
IS http//www.tensiletestermanufacturer.com

• Shanta Engineering
•
  Presentation On

2

• Torsion Testing Machine
• Manufacturer Exporter of Torsion Testing
  Machine Torque Testing Machine. Our product
  range also comprises of Tensile Testing Machine,
  Laboratory Testing Equipment and Laboratory
  Equipment.

3
Torque Testing Machine

• Item Code Se-TTV100
• Digital Torsion Testing Machine is designed to
  perform Torsion Test on Insulator of varying
  heights and for similar application on other
  products. Multiple drive options are available to
  suit customer requirement. The applied torque is
  displayed digitally with facility to display peak
  torque at end of the test.

4

• T-slots are provided on the mounting table to fix
  insulators of varying base dimension. The
  vertical spacing between the base plate and the
  coupler is adjustable through motorized
  operation. Front door is provided for the safety
  of operator during the test. Additionally
  emergency switch is provided to disable the
  drives.

5
Leading Specifications
Capacity 1,000 Nm
Accuracy Better than /- 1 in the torque range 5 to F.S.
Torsion Speed 0.5 RPM
Vertical Clearance 200-750mm (motorized adjustment at 300mm/min)
Mounting plate 300mm Dia. with T-slots at 900, for up to M12 bolts
Table Height 600mm
Measurement Digital (kg.m/Nm. Microprocessor based
Power Supply 415V /-1, 3-phase,50 Hz
Connected Load 0.5KVA
Dimensions 600x450x1800mm (WxDxH)
Weight 400 Kg
PC Interface RS232 (Optional)
6
Cable Testing Equipment's

• We manufacture and export a wide  range of Cable
  Testing Instruments, which is specially designed
  to test different physical properties of cable or
  its raw material. Our range is widely appreciated
  by the clients due to its durability,
  reliability, easy handling and low maintenance.

7

• Cable Testing Apparatus equipment comprise of a
  cubic enclosure with inside dimensions of 3000
  30 mm and constructed with suitable material
  fixed into a steel angle frame. Transparent
  sealed windows shall be provided on two opposite
  sides to permit the transmission of a beam of
  light from the horizontal photometric system.
•
• Flame Retardation test apparatus for single cable
  (Swedish Chimney)
•
• As per  IS 10810 (part 61)
• The test equipment shall consist of a vertical
  steel tube having a wall thickens of 0.8 0.1 mm
  with rectangular ventilation openings.
• A lid on this S.S. Tube is adjustable with the
  help of screw to adjust the temperature.
• A dial gauge fitted above the lid to measure the
  distance it has been adjusted.

8

• Apparatus to check Electric Cables under fire
  conditions
•
• This test is carried out as per B.S. 6853 1999
• The light source shall be a halogen lamp of 12
  volts X 100 w.
• a suitable fan will be provided to ensure uniform
  distribution of the smoke.
• Standard neutral density filters for periodic
  calibration of equipment (optional)

• Fire retardance test for bunched cables
• This test is carried out as per IEC 60332-3 or IS
  10810 (Part 62). These standard covers the method
  for testing of a bunch of cables mounted
  vertically to determine their relative ability to
  resist flame propagation.
• This test is carried  in 4 x 2 x 1 meter chamber
  fitted with burner specified in above standard,
  flow meters and Airflow controls.
• Ladders will be provided as mentioned in the
  standard for mounting of cables.

9
Thermal Stability Test Apparatus IS

• The Thermal stability is an accelerated method to
  determine the rate of degradation of PVC compound
  with time under the influence of temperature.
  Thermal stability is the indication time in
  minutes, indicated by the red coloration of pH
  paper produced by the evolution of hydrochloric
  acid when PVC compound is heated to optimum
  temperature.

10

• TECHNICAL SPECIFICATIONAluminum block - Max.
  Temp.- 250ºCResolution  - 0.1ºCAccuracy  -
  1.0ºCPID temp. Controller with inbuilt
  Timer.Number of holes 10 nos. of diameter 5mm
