Mesoporous Materials

1

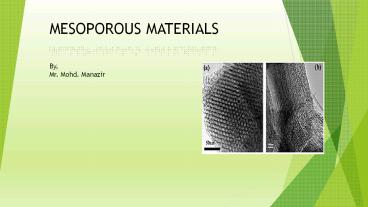

MESOPOROUS MATERIALS
By, Mr. Mohd. Manazir
2
Agenda

• Introduction to porous materials.
• Classification of porous materials
• Mesoporous materials
• Types and composition of mesoporous materials
• Soft template strategy of synthesis of mesoporous
  materials
• Properties and applications of mesoporous
  materials

3
What is porous materials ???

• The materials that consists continuous and solid
  network material filled through voids.
• If a material consists an internal void then it
  can be said as porous material
• The first porous material was synthesized by
  using single template molecule consisting of
  zeolites having aluminosilicate frameworks

4
Nanoporous materials

• Any materials that consists of pores in the size
  of nano level in its structure is called a porous
  materials.
• Nanoporous materials consists of a regular
  organic or inorganic frameworks supporting
  regular porous structures.
• Size 100nm
• These can be classified into further bulk and
  membrane materials
• Ex Activated carbon , zeolites

5
(No Transcript)
6
What is a mesoporous material?

• If the pores diameter is of size 2nm to 50 nm
  then it is called a MESOPOROUS MATERIAL.
• A patent was given in 1970 for the fabrication.
• In 1997 these were produced in japan
  laboratories.

7
Types of mesoporous materials

• Mesoporous materials are classified as follows
• Ordered Mesoporous materials
• Disordered mesoporous materials
• Purely organic
• Organic inorganic hybrid
• Purely inorganic

Based on arrangement
Based on composition
8
Composition of mesoporous material

• Composition
• Silica and alumina with similar sized mesopores.
• Oxides of tantalum, niobium, titanium, zirconium
  tin
• Gold, silver are also embedded for the system

9
Synthesis of mesoporous materials

• There are basically 2 methods
• Soft template (endo template)
• Hard template (exo template, nano casting)

10
Soft template strategy

1. Surfactants
2. Micelles formation
3. Inorganic precursor
4. Micelles precursor interaction
5. Hydrothermal treatment followed by separation and
   drying
6. Template removal
7. Mechanism
8. Characterisation

11
(No Transcript)
12
Properties of mesoporous materials

• High surface area 400-1000 m2/g
• Large pore volume.
• High stability

13
Characterization of mesoporous materials

• There are 3 methods to characterize the
  mesoporous materials
• X-ray diffraction method
• Nitrogen sorption measurements
• TEM images

14

• Based on X-ray diffraction method
• The low angle XRD gives
• Orderness and disorderness
• Based on nitrogen sorption measurements
• The sorption of nitrogen gives
• Surface area
• Pore diameter
• Pore volume
• Based on TEM images
• TEM images helps to identify the
• Morphology
• Wall thickness
• Order of the material

15
Applications

• The size of the pores gives the material to be
  suitable for
• Good chemical catalysis.
• Chemical sensors.
• Molecular separators.
• Drug delivery
• Bone regeneration

16
Thank you
