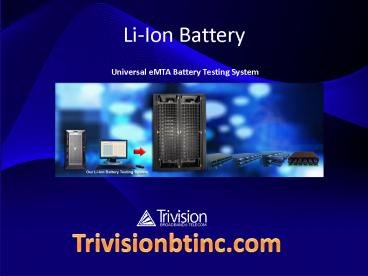

Li-Ion Battery

1
Li-Ion Battery
Universal eMTA Battery Testing System
Trivisionbtinc.com
2
Product Overview

• eMTA Li-Ion Battery Testing System is a high
  precision integrated solution. It is fully
  scalable and each chassis offers 12-batteries
  testing capability. It can test and charge Arris,
  Motorola and SA batteries and consists of
• Manager server with battery tester software
  installed
• Battery Tester Station
• Ethernet switch on
• Barcode scanner and other optional equipment

3
Software and Hardware

• Initial set up offers 5 types of batteries with
  option to add more batteries as future upgrade.
  Software is design to test and charge Arris,
  Motorola and SA Li-Ion batteries. It uses same
  chassis for Arris, Motorola and SA batteries

4
Battery Testing

• 3-Cell Battery Testing
• Each universal 2U chassis is capable of testing
  and charging Arris, Motorola or SA 3-cell
  batteries.
• 2-Cell, 4-Cell 8-Cell Battery Testing
• Each universal 2U chassis is capable of testing
  2-Cell and 4-Cell Arris batteries. Even it can
  test and charge Arris 8-Cell batteries using the
  blind entry adapter.Chassis are fully scalable
  in a standard 19-inch rack where up tp 16 chassis
  can be stacked with vent fans at bottom top of
  the testing rack and and front back door
  closed. Various Types and Brands of Li-Ion
  Batteries

5
Testing Process

• The testing process is designed to evaluate
  battery pack into two important aspects. One is
  to check the charge capacity as a fuel gauge with
  typical voltage and current behavior during
  charging from near empty state of the battery
  pack. While the other one is to confirm the
  discharge behavior based on known load from the
  fully charged state of the battery pack. The
  "Full Test" process can be divided into three
  phases namely pre-discharge, charge and
  post-discharge. In addition to the Full Test
  process, the system is capable of working in
  Charge Only and Discharge Only mode. During
  each and every process, data are saved in to data
  file for future analyses. Statistical report is
  available for the work summary.Individual
  serial number of batter is logged to figure out
  the history of the battery tested.

6
www. trivisionbtinc.com/industry-solutions/battery
-testing-c-16.html

• Contact Information
• Phone [phone]
• Fax [phone]
• TriVision BT, Inc.
• 7880-AB Woodbine AvenueMarkham, Ontario L3R
  2N7Canada
