Tensile Tester Machine & Single Column Universal Tensile testing Machine

1

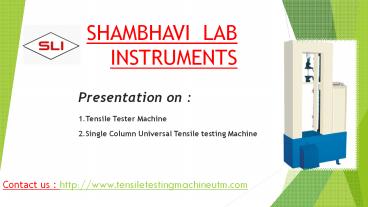

SHAMBHAVI LAB INSTRUMENTS
Presentation on 1.Tensile Tester
Machine 2.Single Column Universal Tensile
testing Machine

Contact us http//www.tensiletestingmachineutm.c
om
2
1. Tensile Tester Machine

• MAIN FEATURES
• - Selection of different speeds by pulley belt
  system- Facility to mount different load
  cells.- Facility to mount various grips /
  fixtures for different tests andmaterials like
  rubber, plastics, cables, leather, paper, plywood
  and metals

3
1. Tensile Tester Machine
SPECIFICATIONS
MODEL NO. SET-S 1000 N SET-S 5000 N SET-S 10 KN
Max. Capacity (N) 1000 5000 10000
Load Resolution (N) 110,000 0.1 0.5 1.0
Max. Crossheaddisplacement withoutgrips / fixtures (mm) 900 900 900
Displacement Res. (mm) 0.2 0.2 0.2
Test Speeds (mm/min) 50,100,250,500 50,100,250,500 30,50,100
Machine Dimensionsmm ( W X D X H) 650 X 500 X 1800 650 X 500 X 1800 650 X 500 X 1800
Power Requirement 0.3 KVA 0.5 KVA 1.0 KVA
Power Supply 415 v /- 10, 3-Phase, 50Hz with Neutral Earth 415 v /- 10, 3-Phase, 50Hz with Neutral Earth 415 v /- 10, 3-Phase, 50Hz with Neutral Earth
4
2.Single Column Universal Tensile testing
Machine

• MAIN FEATURES
• Selection of different speeds by pulley belt
  system- Facility to mount different load
  cells.- Facility to mount various grips /
  fixtures for different tests andmaterials like
  rubber, plastics, cables, leather, paper, plywood
  and metals

5

• ELECTRONIC CONTROL PANEL
• - Front panel membrance type keyboard for test
  set up- 7 segment digital display of load and
  displacement.- Storage of important parameters
  such as peak load, braking load and max.
  displacement- Facility of return of crosshead to
  home position for next test.
• NOTE
• - Over load over travel protection is
  standard.- Lower capacity load cells can be used
  with any machine for better load resolution.-
  Grips can be selected from wide range available
  for diff application.

6
Images of Tensile Tester Machine and Single
Column Universal Tensile testing Machine
7
