Crankshaft , Connecting Rod & Piston

1

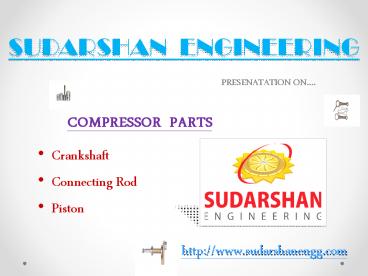

SUDARSHAN ENGINEERING

• PRESENATATION ON.

• COMPRESSOR PARTS

• Crankshaft
• Connecting Rod
• Piston

• http//www.sudarshanengg.com

2
Crankshaft

• Overhung Crankshaft with replaceable Bushing
  Crank Pin. The crankshaft is balanced precisely
  and fitted with ball bearings.

3
Connecting Rod

• Connecting Rods are one piece with solid end
  construction and do not require any adjustment.

4
Piston

• Piston are made of Alluminium / Cast Iron and
  balanced for smooth running. Pistons have
  compression rings and oil control rings for
  better efficiency of the compressor.

5
THANK YOU
http//www.sudarshanengg.com
