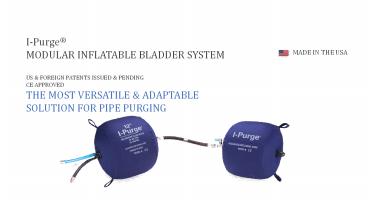

I-Purge MODULAR INFLATABLE BLADDER SYSTEM US
FOREIGN PATENTS ISSUED PENDINGCE APPROVED THE
MOST VERSATILE ADAPTABLESOLUTION FOR PIPE
PURGING
MADE IN THE USA
2
ABOUT I-PURGE
3

• The revolutionary, patent-pending I-Purge Modular
  Inflatable Bladder System is the most innovative
  and versatile pipe purging system available.
  I-Purge creates an impermeable seal to consume
  the least amount of purge gas during pipe purging
  and welding, saving time and money, while
  achieving consistent, high-quality welds.
• Manufactured in the USA, this long-term, reusable
  bladder system enables operators to satisfy a
  myriad of purge requirements with one
  interchangeable solution.
• The I-Purge comes equipped with several highly
  advanced features such as its Quick Connect
  Fittings that snap-in place and allow easy
  assembly and disassembly of components.
• The I-Purge also features an extended length,
  high heat resistant harness that allows the
  bladders to be placed outside the heat affected
  zone and can also sufficiently accommodate any
  pre-heating or high heat applications.

4

• These state-of-the-art features allow the
  operator to create multiple configurations,
  including a one sided pipe stopper and a reducer.
  Bladders are available in sizes ranging from 2 to
  48? (51- 1219 mm) and may be purchased either
  individually or as a complete system, a distinct
  advantage should additional sizes be desired or a
  component need replacing.
• Ideal for fabrication shops, the I-Purge
  surpasses existing technology with its advanced
  design and provides the complete solution for all
  pipe purging needs.

For More Welding Products, Check
http//www.aquasolwelding.com/
5
FEATURES AND BENEFITS
6
1) Inflatable Bladders Modules A B

• Manufactured in the USA from the highest quality
  materials
• Inflated bladders create an impermeable, air
  tight seal on pipe wall
• Spark resistant, durable exterior cover
• Heavy-duty interior inflatable bag
• Re-usable, long-lasting solution for purging
  multiple pipes of the same diameter

7
2) High Heat Extended Harnesses

• Internal hose and protective external fiberglass
  sleeve capable of withstanding high temperatures
• Flexible bridge harness easily navigates through
  pipes, including elbows and tees over 90
• Kink resistant hose assures continuous gas supply
• Complete with luminescent indicator for accurate
  alignment at root gap
• Various lengths of harnesses are available to
  accommodate heat affected zone (HAZ) during
  pre-heating and high heat applications
• I-Purge sizes 36? and greater are equipped with a
  high flow harness to expedite inflation

8
3) Quick Connect Interchangeable Fittings

• Push-button feature enables modules to
  snap-in-place in seconds
• State-of-the-art technology allows for greater
  versatility and easy assembly enabling the user
  to create multiple configurations
• Easy change and replacement of components to
  avoid costly re-purchase of complete system, with
  spare parts available for purchase
• Corrosion resistant proven lock mechanism for
  secure connection

9

• 4) Proprietary Relief Valve
• Factory pre-set relief valves allow for precise
  flow rates while minimizing set-up time and
  reducing gas consumption
• Aids in maintenance of optimum seal on pipe wall
• Prevents risk of over inflation
• Low profile relief valve available on 2? and 3?
  models

• 5) Inert Gas Diffuser
• Patent-pending technology
• Reduces turbulence by dispersing inert gas
  equally in all directions within the weld zone,
  improving weld quality and consistency

10
6) Tri-Flow Inner Tubing System (BLUE, BLACK
WHITE Hoses)

• Multiple inlet/exhaust ports for faster, more
  efficient purgingSeparate Connections
• BLUE   Inflation of BladdersInitial function is
  to inflate bladders then flood weld zone with
  noble gas
• BLACK  Increase Gas Distribution Within Weld
  ZoneDesigned to expedite purging, the secondary
  (BLACK) purge hose is used to flood the weld zone
  with inert gas and evacuate oxygen at a faster
  rate
• WHITE    Exhaust ConnectionConnect this hose to
  an Oxygen Monitor, such as Aquasols PRO OX-100
  that obtains readings down to 100 PPM (0.01),
  for continuous or spot monitoring of oxygen in
  the weld zone

11
Tri-Flow Inner Tubing System
Separate Connections
Download our product brochure here
http//www.aquasolwelding.com/wp-content/uploads/2
014/09/i-purge-brochure.pdf
12

• 7) Pull Loops
• Strong pull loops can be connected to a rope or
  chain to insert or remove the I-Purge
• It is important that bladders be deflated before
  insertion or removal
• Moderate tension (approx. 5 lbs.) should be
  applied on pull-wires to prevent sagging of the
  harness during installation and operation

• 8) Carrying Bag
• When welding is complete, bladders can be
  deflated, extracted, cleaned and stored in the
  provided carrying bag
• Carrying bag protects the bladder when not in use
  from dust and debris in most industrial work
  environments, prolonging life

13

• 9) I-Purge Reducer
• Unlike other models with permanent fittings, a
  pipe reducer can be easily created by simply
  connecting two bladders of different, yet similar
  diameters
• Combine different sizes to create unique pipe
  configurations

• 10) I-Purge Isolator Inflatable Pipe Stopper
  Single Purge Bladder
• The I-Purge Isolator is designed to function as a
  pipe plug for a wide range of applications,
  including purging of valves or tanks, as well as
  non-purging applications such as pipe system
  sealing for servicing, cleaning and inspection
• Constructed of heavy-duty materials designed to
  withstand the extreme conditions of the
  petrochemical, utility and construction
  industries

14
I-Purge Reducer
I-Purge Isolator Inflatable Pipe Stopper Single
Purge Bladder
15
How I-Purge Works
To Know More About I-Purge, Click On This Link
Below http//www.aquasolwelding.com/i-purge
16
I-Purge Modular System Components Equipped with
the most Advanced Interchangeable Components 1.
Module A2. Module B3. Quick Connection to
Module B4. Fiberglass High Heat Bridge
Harness5. Quick Connection to Module A6. Relief
Valve7. Direct Purge (BLACK) Hose8. Exhaust
Monitor Connection 9. Inflation Purge (BLUE)
Hose10. Luminescent Indicator11. Pull Loops12.
Gas Diffuser
