Double Arm Mixer

1

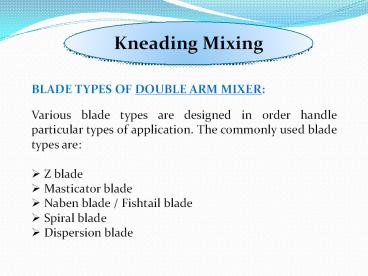

Kneading Mixing

• BLADE TYPES OF DOUBLE ARM MIXER
• Various blade types are designed in order handle
  particular types of application. The commonly
  used blade types are
• Z blade
• Masticator blade
• Naben blade / Fishtail blade
• Spiral blade
• Dispersion blade

2
Z Blade
This design is best suited for universal
applications. This may be positioned with either
tangential or overlapping action.
3
Masticator Blade
Used for a superior dispersion of products
difficult to mix such as rubber, plastics or
abrasive materials
4
Naben Blade / Fishtail Blade
Suitable for mixing cellulose materials and
highly viscous products such as gum
5
Spiral blade
This blade type is applied for product which
requires less shear force and provides a smooth
folding action and is excellent for mixing
a fiber reinforced product, available in 135 and
180 degree spiral.
6
Dispersion blade
This agitator requires less power than sigma
blade and it is used for sanitary applications.
7
