Oil separator, Air receiver-vertical and Air receiver-Horizontal.

1

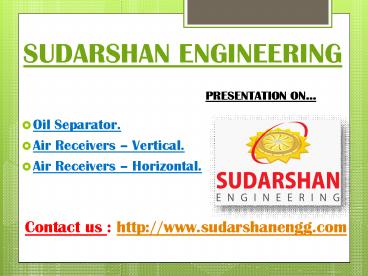

SUDARSHAN ENGINEERING

• PRESENTATION ON

• Oil Separator.
• Air Receivers Vertical.
• Air Receivers Horizontal.

• Contact us http//www.sudarshanengg.com

2
Oil Separator

• Air Oil Separators remove compressor
  lubricant from the compressed air stream. An Air
  Oil Separator reduces the lubrication oil
  entrained in the compressed air to 2-3 ppm.
• Most rotary screw compressors inject compressor
  oil into the compression chamber when the air is
  being compressed. This oil serves as a coolant
  and provides lubrication by absorbing heat of
  compression.

3

• The compressed air is full of oil when it leaves
  the compressor air end. This oil needs to be
  removed and returned to the oil sump, so that the
  same oil can be circulated again. The Air Oil
  Separator removes this oil which is in aerosol
  form from the air, so that the user gets oil free
  air.
• The Air oil Separator is the component that
  separates the compressor lubrication oil which
  may be mineral oil or synthetic oil from the
  compressed air and returns it to the Oil sump.

4

• Oil Separator

5
Air Receiver Vertical

• Designed and constructed in accordance with ASME
  Section VIII Div-I Code for compressed air
  storage use."U" stamped and registered with the
  National Board of Pressure Vessel Inspectors.
• Most designs include Canadian Registration
  Numbers (CRN).
• Capable of building to American Bureau of
  Shipping (ABS) and United States Coast Guard
  (USCG) codes.- Custom engineered designs
  available upon request.).- Exterior surface
  painted with one coat standard shop primer. -
  Special exterior and interior coatings
• available upon request.

6

• Air Receiver Vertical

7
Air Receiver Horizontal

• Air Compressor Tanks Safely Store Compressed Air
  For Filling Tires, Blowing Off And Cleaning
  Projects And Mobile Applications.
• Air Compressor Tanks are made with steel and a
  gray powder paint finish for long-lasting
  durability. Designed for point-of-sale air
  storage and providing compressed air for short,
  peak demand applications. Offers multiple
  openings and NPT thread sizes. Plugs included in
  all openings.

8

• Air Receiver Horizontal

9
..THANK YOU..

• Contact us http//www.sudarshanengg.com
