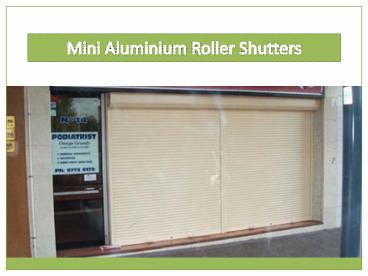

Mini Aluminium Roller Shutters

1
Mini Aluminium Roller Shutters
2
Mini Aluminium Roller Shutters
Maverick Mini Roller Shutters are suitable for a
variety of commercial, industrial and domestic
applications. They possess internal or external
installations like shopping centres, shop fronts,
counter tops, arcades, serverys, clubs,
doorways, verandas etc.
3
SPECIFICATIONS
SIZE
Each individual Mini can be of 3.0m width or
total of 9 square meters..
CURTAIN
The curtain is constructed by interlocking 40mm x
1.5mm extruded aluminium slats, in 6063-T5 alloy
to create a hinge. Each adjoining slat is fitted
with moulded nylon end clips to avoid lateral
movement and ensure a smooth operation inside the
side guides.
4
SPECIFICATIONS
BOTTOM RAIL
The bottom rail of the shutter is constructed
using an extruded aluminium section 65mm x 10mm,
thus encasing a locking device.
LOCKING
The bottom rail houses have keyed centre locks
inside the extrusion. This operates 15mm x 2mm
aluminium flat bars which perform the functions
efficiently. The standard locking position
enables double sided lock with functions from
both inside and out.
5
SPECIFICATIONS
SIDE GUIDES
The guides are constructed from extruded
aluminium sections 53mm deep x 25mmwide, 62mm
deep x 25mm wide or Heavy Duty 72mm deep x 27mm
wide. The option of felt brush is also available.
BRACKETS
Manufactured from slotted 90mm x 40mm mild steel.
6
SPECIFICATIONS
PELMET BOXES
All Mini roller shutters can be kept in different
types of pelmet boxes from 150mm up to 250mm.
DRUM
The drum is constructed from 60mm diameter
hexagonal tube. It is fitted with helical coil
springs meant for counterbalancing the curtain
weight during the operation.
7
SPECIFICATIONS
OPERATION
Manual operation is carried out by simply pushing
up and pulling down with the help of a supplied
pull pole. Doors can be motorised electrically by
using the push button, remote control, key
switch operation etc.
FINISH
Clear anodised standard colour Powder coating can
be used in Deluxe powder coat range.
8
SIDE GUIDE CHART

DrumOption Height mm 1200 1500 1800 2100 2400 2700 3000 3300 3600
60 mmDrum RollDiameter 165 180 190 200 205 220 240
130 mmDrum RollDiameter 190 200 205 220 235 250 265 280 290
