How does LT Power Cable benefit you.

1

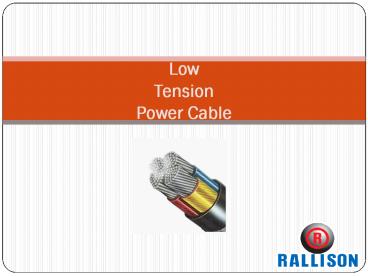

Low TensionPower Cable
2
Contents

• Introduction
• Construction
• Types sizes
• Features
• Application
• More Details

3
Introduction

• Power Cables - An assembly of two or more
  electrical conductors, usually held together with
  an overall sheath. The assembly is used for
  transmission of electrical power.

4
Construction
5

• Conductor  Stranded / Solid / Circular
  shaped-Aluminum / Copper
• Insulation  PVC /XLPE/HR PVC / Zero Halogen
• Inner Sheath  PVC/HR PVC /FR/FRLS PVC
• Armouring  G. S.Round Wire/ Flat Strip or
  Aluminum Wire /Flat Strip
• Outer Sheath  PVC /HR PVC/FR/FRLS PVC /Zero
  Halogen

6
Types sizes

• Types
• 1.1 kV PVC /XLPE as per IS 1554 (Part-I) / IS
  7098(Part- I)/BS /IEC.
• Sizes
• Single Core 1.5 to 1000 sq. mmMulti core 1.5 to
  630 sq. mm

7
Features

• These cables can carry high current with high
  short circuit rating 250C as against 160C for
  PVC.
• Dielectric losses are very less in these cables.
• LT power cable is flexible, lightweight,
  fire-resistant in nature.

8
Application

• LT power cable may be installed as permanent
  wiring within buildings, run overhead, buried in
  the ground or exposed.
• And Flexible power cables are used in mobile
  tools, portable devices, and machinery.

9
More Details At

• Rallison Electricals Pvt. Ltd.
• G I / 118, Mayapuri, Phase I, New Delhi -
  110064
• Phone [phone]
• Mobile [phone]
• URL http//www.rallison.com/lt-power-cable/
