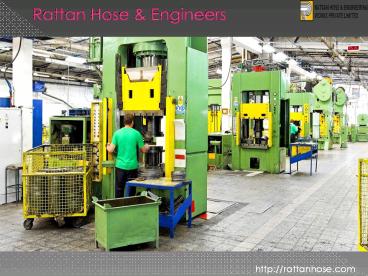

Rattan Hose & Engineers

1
Rattan Hose Engineers
http//rattanhose.com
2
About Us

• Rattan Hose Engineering Works company is an
  Indian Regions foremost provider of complete
  hydraulics solutions. The foundation of our
  operations is in Northern India, but the
  customers and diverse applications are highly
  nationalised.
• Our complete range of hydraulic components
  including high pressure hose pipes, pumps,
  motors, valves, actuators, steering units,
  customised cylinders, power packs and presses are
  delivered across national wide

http//rattanhose.com
3
Hydraulic Power Packs
Hydraulic Power Pack is one of the wonderful
units used for n numbers of applications. It is a
vital piece of usable equipment worked with
innumerable machines. There are so many
collections of such attractive products come
after the great efforts made by Hydraulic Power
Pack Manufacturers in Delhi.
http//rattanhose.com
4
Hydraulic Control Valves
? A hydraulic valve properly directs the flow
of a liquid medium, usually oil, through your
hydraulic system. The direction of the oil flow
is determined by the position of a spool. ?
Hydraulic valves are available in a variety of
sizes. The size required is determined by the
maximum flow of the hydraulic system through the
valve and the maximum pressure in the hydraulic
system.
http//rattanhose.com
5
Hydraulic Motors
A hydraulic motor converts hydraulic energy into
mechanical energy a rotating shaft. It uses
hydraulic pressure and flow to generate torque
and rotation. There are different types of
hydraulic motors
Hydraulic gear motor
Balanced vane motor
http//rattanhose.com
6
DynaFlex Hydraulic Hose Pipes
We manufacture high/low pressure hose with end
fittings consisting of several sizes and shapes
example Female Swivel D Nipple, Female Swivel
S Nipple, Male Fix Cone Taper, Male Fix
Outer Taper, Male Fix Taper Thread, BE Nipple,
Hydraulic Split Flange and Elbow 90 degrees. It
could be used for hydraulic, Pneumatic, Fuel,
Gasoline, Air, Water Steam applications.
http//rattanhose.com
7
Hydraulic Pneumatic Cylinders

• We manufacture top notch quality single and
  double acting types hydraulic/pneumatic
  cylinders.
• The stroke length is up to 6000mm in
  conventional types and up to 24000mm in
  telescopic type.
• Maximum working pressure from 10 kg/cm2 to 250
  kg/cm2 with maximum bore diameter of 800mm for
  hydraulic cylinders.
• For pneumatic cylinders pressure ranging from 2
  kg/cm2 to 15 kg/cm2.

http//rattanhose.com
8
Hydraulic Press
with vast experience in hydraulics, our company
have procured market integrity by manufacturing
quality array of hydraulic presses since 1976.
The application of the machine includes pressing,
assembling, punching, straightening, broaching,
riveting and bending. We supply our machine that
can be used in automobile parts, electrical
parts, telecommunication plastic parts and
house-hold items.
http//rattanhose.com
9
DynaTech Heat Exchangers
The oil to be cooled is admitted into the
shell around the densely fitted copper tubes
having a number of baffles, which make the oil
flow in a zig-zag manner.
Working Pressure 10 kg/cm2 Multiple Copper tubes
in a steel shell type construction using water as
cooling medium. Easily accessible tubes by
opening end covers. Chocked tubes can be easily
cleaned or replaced in case of leakage.
http//rattanhose.com
10
DynaTech Drive Coupling
DynaTech Drive Coupling has two steel gears which
engage in a sleeve of high grade plastic which
has got very good strength over a wide range of
temperature. The steel gears have curved top
surface to allow for axial and angular
misalignment.
http//rattanhose.com
11
Service and Support
Our dedicated team of engineers, technicals and
inspection team give complete support on your
site national wide. The appointment could be
booked by contacting us.

• Meeting arranged with our technical person over
  phone or email
• Prior discussion over the machine to be
  developed
• Hydraulic/Pneumatic components to be used in
  developing machine (including components make)

http//rattanhose.com
12
Contact Us
C-67, Mayapuri Industrial Area, Phase-II, New
Delhi-110064, (India) Phone- 011-28116500,
28116076 41845557, 41845558 Email-
info_at_rattan.co.in
rattanmayapuri_at_gmail.com Website-
http//rattanhose.com/
