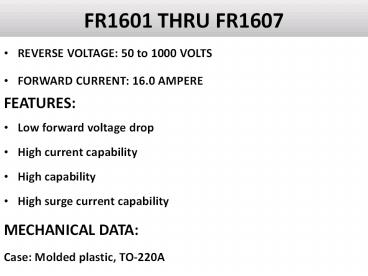

FR1601 THRU FR1607

• REVERSE VOLTAGE 50 to 1000 VOLTS
• FORWARD CURRENT 16.0 AMPERE
• FEATURES
• Low forward voltage drop
• High current capability
• High capability
• High surge current capability
• MECHANICAL DATA
• Case Molded plastic, TO-220A

2
FR1601 THRU FR1607

• Epoxy UL 94V-O rate flame retardant
• Terminals Leads solderable per MIL-STD-202
• method 208 guaranteed
• Polarity As marked
• Mounting position Any
• Weight 0.08ounce, 2.24gram

3
FR1601 THRU FR1607
4
FR1001CT THRU FR1007CT

• REVERSE VOLTAGE 50 to 1000 VOLTS
• FORWARD CURRENT 10.0 AMPERE
• FEATURES
• Low forward voltage drop
• High current capability
• High capability
• High surge current capability
• MECHANICAL DATA
• Case Molded plastic, TO-220

5
FR1001CT THRU FR1007CT

• Epoxy UL 94V-O rate flame retardant
• Terminals Leads solderable per MIL-STD-202
• method 208 guaranteed
• Polarity As marked
• Mounting position Any
• Weight 0.08ounce, 2.24gram

6
FR1001CT THRU FR1007CT
7
SR4020PT THRU SR40200PT

• REVERSE VOLTAGE 20 to 200 VOLTS
• FORWARD CURRENT 40.0 AMPERE
• FEATURES
• Plastic package has UL flammability
  classification 94V-0
• Metal of silicon rectifier,majority carrier
  conduction
• Guard ring for transient protection
• High capability
• Low power loss, high efficiency
• High surge capacity

8
SR4020PT THRU SR40200PT

• For use in low voltage,high frequency
  inverters,free whelling,and polarity protection
  applications
• MECHANICAL DATA
• Case Molded plastic, TO-3P/TO-247AD
• Epoxy UL 94V-O rate flame retardant
• Terminals Leads solderable per MIL-STD-202
  method 208 guaranteed
• Polarity As marked
• Mounting position Any

9
SR4020PT THRU SR40200PT

• Weight 0.2ounce, 5.6gram
