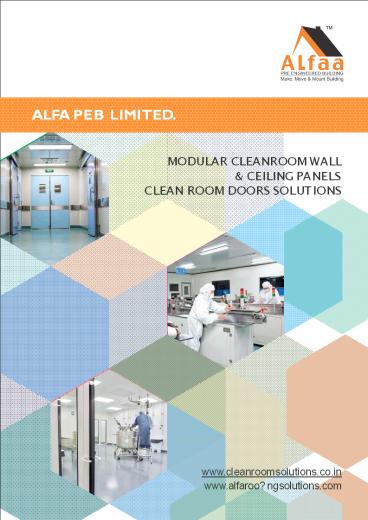

ALFA PEB LIMITED. MODULAR CLEANROOM WALL
CEILING PANELS CLEAN ROOM DOORS SOLUTIONS
www.cleanroomsolutions.co.in www.alfaroo?ngsolutio
ns.com
2
Modular Clean Room Wall Panels Ceiling Panels
Clean room is an environment, typically used in
Pharma, Health and food processing Industry,
Semiconductor manufacturing, Biotechnology, Life
sciences and other fields those are very
sensitive to environmental contamination. That
has a low level of environmental pollutants such
as dust, airborne microbe's aerosol particles
and chemical vapour. A clean room has a
controlled level of contamination that is
specified by the number of particles/m3 and by
maximum
particle size. Flush wall surface with radius
corners for ease of cleaning. Wall panels
feature non-porous surfaces with architectural
finishes that withstand repeated cleaning and
sanitization with various chemical solutions. Our
modular systems can be easily expanded, relocated
or reused, allowing the enclosure to adapt to
future changes or other expansion at your
business.
Non Progressive Clean Room Wall Panels Panel
Joint Detail
Designed to meet the specifications of cleanroom
environments Panels Featuring of 50 mm, 60 mm, 80
mm, 100mm wall panels. This system can be used
to outfit existing facilities or create
freestanding envelope structures.
Features l Load-bearing Systems l In-Stud Wiring
/ Utility Raceways l Non-progressive Construction
Aluminium - H Section
Non Progressive
Seleant Gap 3-4mm
0.6mm thk Gipc Sheet Service panel
Puff infill
1200
1200
1200 Enlarged view M Section
Benefits
l Wall panels provide flush, seamless wall
surface, Completely Flush Panel System l Ideal
for wash down environments l Easy removal of
panels without disturbing adjacent panels,
ceiling or framework for minimum contamination l
Superior finish l In-Stud Wiring Raceways l
Integrated Ceiling Options l Integrated Window
Options l Cavity Wall Design l Easily Assembled
Enlarged view M Section
1200
1200
1200
70 MM THICK ALUMINIUM Bottom Track Panel Height
STD PANEL
STD PANEL
STD PANEL
ENGLARGED VIEW BOTTOM TRACK
70 MM THIC GI BOTTOM TRACK
2
3
Progressive Clean Room Wall and Ceiling Panels
Wall panels systems are ideal for applications
with significant bulk heading requirements, and
anti-static wall systems. An all-purpose modular
clean room system, features various thick wall
Panels that can be utilize for a wide variety of
wall partition.These panels can be used to outfit
existing facilities or create freestanding
envelope structures.
Feature
l Extensive Bulk heading Flexibility l Support
for Process/Utilities l Anti-static Wall Panels l
Load-bearing Systems
Aluminium - H Section
STD PANEL
STD PANEL
STD PANEL
Panel Joint Detail
70MM THICK GI Bottom Track
70MM THICK ALLUMINIUM BOTTOM TRACK PANEL HEIGHT
Aluminum H Section
Non Progressive
Enlarged View M Section
Seleant gap 3-4mm
0.6mm thk GPSP Sheet Service panel Puf Infill
80
Enlarged View M Section
DetA DetA Enlarged View M Section Ceiling
Panels
ENLARGED VIEW BOTTOM TRACK
RCC SLAB
Ceiling panels are mounted with specially
designed suspension members for every
application. Walkable Non Walkable ceiling
panels are made as per client's requirement with
specially designed stiffening systems for walk
able load bearing ceilings. Clean room ceilings
can be designed to be flush to the grid.
M10 Anchor Sheet M 10 Tle-Rod Progressive
Ceiling Grid
Turn Buckle
R 70 mm Coving
Panel skin 0.8 mm Sheet Thk GPSP Bottom
Track Clean Room Panel Specification
Thickness 50/60/80/100 mm
Top sheet Thickness 0.6/0.8
Sheet types PCGI-GPSP/PPGI/SS
Surface Coating Pre Painted/Powder Coated/Fire Rated Paint
Infill PUF/Rockwool/EPS/PIR/Honey Comb Paper
Length Customised
Width Customised
Colour As per Requirements
ADVANTAGES / BENIFITS l Components can be
dismantled and reused l Outstanding load bearing
capacity l Hygenic
l Odorless l Long life and durable l Resistant to
most oils, chemicals and solvents l Fire
resistant
3
4
Clean Room Doors l Clean room doors are available
with interfacing profile for a flush and easy
installation on existing walls l Fully flush
surface with wall system l A large variety of
swing out pharmaceutical doors l Manual,
semiautomatic fully automatic sliding doors l
Door hardware by world leading manufacturers l
Custom dimensions available l Heavy- duty
structure for high durability l Scientfic Doors,
Fire rated Doors, Emergency Doors Sliding Doors,
and Rollup Door
Specifications
l Frame Sheet Thickness 1.2mm l Shutter
Thickness 0.8mm l Infill Honeycomb Kraft
Paper l Glass Double Glazed Glass 5mm Thick l
Lock System Standard l Pivot/Hinge SS Butt
Hinge l Door Closure l Door Dimension Up to
2400mm W 3000mm H
Other Hardware
Features l Designed to meet hygienic and
stringent requirement of clean rooms l Made for
Cleanroom Interior Applications l Customized as
per requirement l Acoustic l No Pressure
Leakage l Prevents Bacteria Growth l Flush
Surface, Easy to Assemble
l Kick Plate (Optional) - SS l Push Plate - SS l
Concealed Flush Bolt (Double Leaf Door) l Drop
Seal l Door Bumpers l Door Stopper l Pull Handle
- D Type
Clean Room Doors Applications l Pharmaceuticals
Healthcare l Drug Medicine manufacturing l
Electronic l Semi-conductor l Telecommunication
l Defence l Food Processing l Life Science
4
5
Riser Panels ALFA Riser is extensively applied to
overall appearances of cleaned rooms. Through
strong manufacturing capabilities, we are able
to provide Customized Return Air Riser as per
the specifications of clients. Suitable for
Pharma Food application, clean room
application. Powder coated SS 304 Riser with
10 micron filter, Hepa filter is manufactured.
Front top operated volume control damper is
provided to control flow through riser. SS 304
perforated sheet, aluminium or G I powder coated
perforated sheet are provided as per the
requirement
Duct Should be extended 150mm above height PUFF
INFILL
Duct Fixing With Raiser
Panel Width
1st PVC Conduit
PUFF INFILL
Elect Module Box Cutout
Elect module Box
Return Air Perforated
Gpille
Perforate Gpille 62 MM HEIGHT BOTTOM TRACK
INBUILT RISER TYP DETAIL
Clean Room Wall /Ceiling Integrated Accessories
Clean Room Flush Window
Double Flush Window
Fan Filter Units
Air Showers
Pass Through Chambers
Grill Openings
Covings
2D Coving
3D Coving
5
6
Brick Wall Flush Window
Conduit Panel
DOUBLE GLASS VIEW PANEL
1st Pvc Conduit
Panel Width
Puf Infill
ALU. PROFILE
ADHESIVE TAP 3M / SAINTGOBIN ALU.SECTION (30x17x
1.65.Thk)
SILICON SELENT ALU.1.2mm POWDER COATED
SHEET COATED SHEET ALU.1.2mm POWDER COATED
SHEET ADHESIVE TAP 5MM PLAIN GLASS WALL PLUG
(12x50mm )
1st PVC Conduit
5mm Plain GLASS
Elect Module Box
PUFF INFILL
Elect Module Box Cutout
SILICAJEL CSK SCREW ( 10x60mm)
CIVIL WAL
70MM Height Bottom Track
Wall Panels Partitions for Industrial /
Commercial Application
The "All in One" In Plant partition Wall System
Whether you need to create office space in your
factory, enclose a powder coating operation, or
divide plant space from floor to ceiling, alfa
Pre engineered wall partition will have a wall
system for your need. Alfa modular wall systems
are ideal for creating in-plant demising walls
quickly and cost effectively due to the minimal
waste and shorter installation time frame
compared to traditional construction materials.
Plus, their modular design allows these wall
systems to be moved or re-located - a perfect
solution that adapts with changing business
needs. Reach heights of 50-feet from floor to
ceiling to completely enclose an area to create
temperature and humidity controlled enclosures.
These wall partition are ideal for creating
temporary demising walls or permanent enclosures
to enhance environmental control, workflow
efficiency, Due to their prefabricated design,
these modular wall systems integrate easily with
one another as well as with the existing
building's structure. Reduced Installation time
and less disruption to work space as compared to
traditionally built walls. Reduced Cost and
Materials. Alfa Puf panel Panels provide
excellent insulation across the entire wall and
roof area. The advanced polyurethane core and
impermeable steel faces provide insulation values
that significantly lower heating and cooling
costs.
6
7
Wall panels options / Tounge and grove PU/PIR
Sandwiched PUF Panels
74.5
62.5
62.5
62.5
62.5 1000
62.5
62.5
62.5
Rock Wool Sandwich Panels
74.5
62.5
62.5
62.5
62.5 1000
62.5
62.5
62.5
Sandwiched EPS Panels
74.5
62.5
62.5
62.5
62.5 62.5 62.5 62.5 1000
Applications l Biotechnology Lab l Operation
Theater l Painting Industry l Automobile
IndustryAutomotive Manufacturing l Equipment
Enclosures l Aerospace Applications
l Environmental Test Facilities l
Microelectronics and Nano-Technology
Manufacturing l Pharmaceutical and Nutraceutical
Packaging l Research Facilities l Medical
controlled Environments l Metrology Labs/CMM
Rooms l Food Industry
Concelead Fastening System
Camlock Systems
1000mm
Specification
Exterior Profile Corrugated pattern (micro rib / ribed/ plane )
Panel Thickness 30/40/50/60/80/100/120/150 mm
Lengths 2-15 m. max.
Surface Finish Pre painted / GPSP Powder coated / Stainless steel
Standard Colours White and customised colour against order
7
8
TM
www.cleanroomsolutions.co.in www.alfaroofingsolut
ions.com
Branch offices Chennai 7, 1st Floor, Alsa
Mall, No.149, Montieth Road, Egmore, Chennai -
600008.
Manufacturing Plant- Unit 1 Head Office
PEB/Continous Sandwich Panel Manufacturing
Plant- Unit 2
Hyderabad Door No.4-3-181 to 191, Above -
Lakshmi Vilas Bank, Mahankali Street RANIGUNJ,
Secunderabad - 500 003.
Steel Rofing Production Line 65/9-10, N.R.
Road Bangalore - 560 027
Production Line Survey no.162,163,164/2,167,
Kalukondapalli Village, Thally Road, Hosur -
635114. Manufacturing Plant- Unit 3 Steel
Purlin/Steel Decking/ Steel Roofing Production
Line Gat No.262, Alandi Phata, Opp. Hotel
Gandharva, Nanekarwadi, Chakan, Pune- 410501
Manufacturing Plant, Unit 4 Clean Room Wall And
CeilingPanel/Cold Storage/ Clean Rooms Doors
Kochi 48/1775, Geethanjali Junction
Near Vyttila, Cochin - 682 019
Steel Doors Production line
Plot NO. 345, Harohalli II Phase Ind. Area,
Harohalli Kanakapura Taluk, Ramanagar Dist, PIN
- 562112.
Ph 080-40717111/112/113/114 Fax [phone]
Toll-free No 1800 103 9242
Manufacturing Plant, Unit 5
All Types of Continous Sandwich Puf Panel
Production Line. Survey NO. 192, Paikki khata No
254 and survey No 212 Paikki 2
email sales_at_asbs.in
village chancharvadi, Taluka Sanand, District
Ahmedabad - 382213
