vertical machining center

1

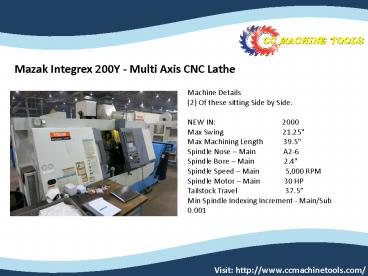

Mazak Integrex 200Y - Multi Axis CNC Lathe
Machine Details (2) Of these sitting Side by
Side. NEW IN
2000 Max Swing
21.25" Max Machining Length
39.5" Spindle Nose Main
A2-6 Spindle Bore Main
2.4" Spindle Speed Main 5,000
RPM Spindle Motor Main 30
HP Tailstock Travel
37.5 Min Spindle Indexing Increment - Main/Sub
0.001
Visit http//www.ccmachinetools.com/
2
OKUMA CAPTAIN L470M/1250 - 3 -AXIS CNC LATHE
Machine Details NEW 2006 SPECIFICATIONS SWING
OVER BED ................24.41" SWING OVER
SADDLE .........16.54" MAX. TURNING LENGTH
......49.2" SPINDLE TAPER ....................A2-
11" BORE DIAMETER ...................4.33" TYPE
AND NO OF TOOL STATIONS ..VERT 12 C - AXIS
TRAVEL MAIN / SUB ...........001 ROTARY TOOL
SPINDLE SPEED .....3000
Visit http//www.ccmachinetools.com/
3
MAZAK DUAL TURN 20 axis Turning Ctr.
Machine Details NEW IN 2005 Control
Mazatrol 640T SPECIFICATIONS Maximum
Swing 12.60 Maximum Machining Diameter
10.0" Maximum Bar Work Capacity 2.0" Maximum
Machining Length 5.910" Main Spindle Chuck
Size 8" Maximum Speed
5000 rpm
Visit http//www.ccmachinetools.com/
4
Samsung SL 25B-500 CNC Lathe 2011
SPECIFICATIONS Swing 20.5" Swing over cross
slide 13.8" Distance between centers 24.6" max.
machining diameter 15" Max. machining length
20.9" Chuck size 10" Spindle speed 3,500
RPM EQUIPPED WITH Fanuc Oi-TD control, 10" 3 jaw
chuck, 3.07" Bar capacity, Chip conveyor, Tool
Eye, 12 station turret, Tool holders and wedges,
Visit http//www.ccmachinetools.com/
5
TOSHIBA-Shibaura BTD 200 QE 1995
Tosnuc-7-32 CONTROL 39" X 39" Rotary Table Full
B Axis 40 ATC 50 Taper 25 HP main Motor Max RPM
1250 Travels X 47" Y-31" Z-27" Chip Conveyor
Visit http//www.ccmachinetools.com/
6
Contact Us
Email sales_at_CCMachineTools.com Address 358
Hollow Hill Wauconda, IL 60084 PH (847)
504-6700
Thank You
