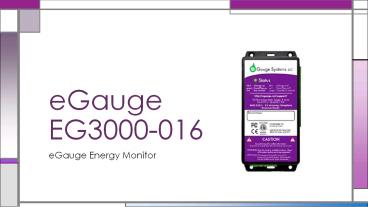

eGaugeEG3000-016

• eGauge Energy Monitor

2
eGauge Energy Monitor

• The eGauge Energy Monitor is a flexible, secure,
  web-based electric energy meter that measures up
  to 12 circuits on up to 3-phases (120V-480V,
  50-60Hz). You can use the eGauge to measure and
  record building electrical consumption, solar,
  wind and other electricity generation, and
  consumption of individual circuits, such as
  equipment, pumps, motors, EV charging and
  heaters. The data can be viewed on any web device
  through the in-built web-server. The display
  updates every second, giving direct feedback on
  any load or generation changes. It records the
  most recent 30 years of data in the built-in
  solid-state memory.

3
Benefits

• Monitor Performance of a Solar Installation
• Track your production and compare it to your
  expected renewable energy generation, helping
  users achieve lower energy consumption, maximize
  payback, and lower their monthly electricity
  bill.
• Monitor system health
• Since eGauge is accessible on the net with no
  extra charge, you can easily check on the system
  while traveling. For installers with multiple
  systems, eGuard Manager provides an easy way to
  monitor all your installed systems on a single
  screen and detect failures, even before your
  customers do.

4
Benefits

• Consumption Vs. Production
• With CTs installed on the site load, you can see
  how much power is being consumed and compare it
  against the solar production. Up to 12 CTs can be
  installed so other circuits can be monitored.
• Operation and Maintenance Contracts
• Using an eGauge to monitor your installations,
  you can observe a change in production over time.
  This allows you to contact your users when they
  require panel cleaning, or if there is some
  reason the system can be maintained (tree shade,
  faulty inverter etc. ).

5
EGAUGE EG3000-016 SPECS

• Up to 12 Circuits on 3-phases (120V-480V,
  50-60Hz).
• 1 Accurate (Compliant to ANSI C12.1)
• Solid State Memory Records
• 1 second granularity for 10 minutes
• 1 minute average for 1 year
• 15 minute average for 30 years

6
EGAUGE EG3000-016 SPECS

• Data can be viewed on a remote device through the
  built-in web-server. The display is updated every
  second, giving immediate data on any load or
  generation changes. It records the most recent 30
  years of data in the built-in solid-state memory.
• Web connection - ethernet required (another model
  is available which uses ethernet over power)
• This unit requires specific CTs to function.
• The measurements can be accessed via BACnet or
  can be pushed to a server via an xml API.

7
BCJ Controls

• At BCJ Controls we produce Secondary Protection
  Switchboards with solar protection relays for
  Commercial Solar over 30kW grid connections.
• BCJ Controls - commercial solar network
  protection unit - switchboard manufacturing
  including protection relay anti-islanding and
  zero export devices. BCJ Controls is a solar
  technology company set up by ex-utility
  industrial sparkies. Between them they have a
  large amount of experience in electrical grid
  protection, as well as dealing with utilities on
  a day-to-day basis.
