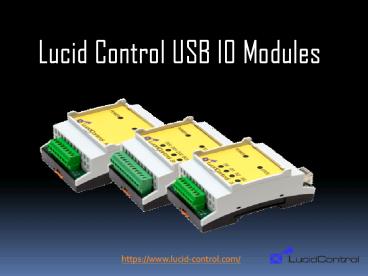

Lucid Control USB IO Modules
https//www.lucid-control.com/
2
Lucid Control captures and generates analog and
digital signals like voltages, temperatures,
resistances and logic. The host computer can make
use of this data e.g. for logging, monitoring or
control tasks. Additionally, Lucid Control
devices are able to generate output signals and
they are ready to control power loads like lamps,
fans or pumps simply via USB
3
Creation of a virtual Remote Io Device on a
Windows Client
The IO modules implement the standard CDM profile
that is natively supported by most Windows
versions. The picture explains the concept of
connecting to a network device server via a
null-modem emulator driver. At a first glance it
seems to be difficult using two virtual serial
ports instead of one. The gray highlighted part
shows the function of the kernel mode driver, the
yellow highlighted part shows applications
running in user mode.
4
Lucid Control is compatible with most computers
running Microsoft Windows or Linux. Recently,
small computer boards like the Raspberry Pi and
the Beagle Bone Black became more popular. These
boards provide USB and network interfaces and
allow the connection of keyboard and display.
5
Lucid Control USB Io Modules Product Series
6
