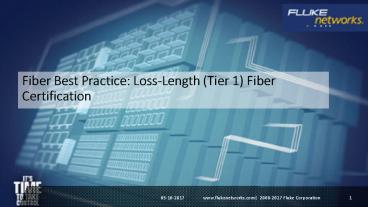

Fiber Best Practice Loss-Length (Tier 1) Fiber
Certification
www.flukenetworks.com 2006-2017 Fluke
Corporation
2
Fiber Best Practice Loss-Length (Tier 1) Fiber
Certification
Introduction to fiber best practices
  • The Fiber Best Practice Series was designed by
    Fluke Networks to educate about important optical
    fiber best practices, including
  • Fiber inspection and cleaning
  • Loss-length (Tier 1) fiber certification
  • Fiber plant characterization and troubleshooting
    (Tier 2 certification)
  • This white paper details the best practice of
    loss-length (tier 1) fiber certification.
  • With 40 G/100 G infrastructure deployments in the
    datacenter becoming reality, the shrinking loss
    budgets of optical fiber cabling due to
    increasing bandwidth demands mean that reliable
    and efficient initial installations are now more
    important than ever. To minimize costly
    installer/contractor callbacks, network
    technician troubleshooting time, and unnecessary
    network downtimes, fiber-handling best practices
    should always be followed.

Table of contents
  • Why you should care
  • How it works
  • Loss-length testing procedures
  • Additional fiber best practice resources

3
Fiber Best Practice Loss-Length (Tier 1) Fiber
Certification
Why you should care
By conducting loss-length certification of the
cabling infrastructure, you are ensuring that it
can support the associated bandwidth demand and
network applications according to prescribed
specifications. Fiber cabling testing in
accordance to such guidelines is not only a best
practice that enables your network applications
to run at peak performance, but also helps to
prevent costly network troubleshooting and
downtimes. Loss-length certification is required
for virtually all fiber links today and is
detailed in industry standards such as
Telecommunication Industry Associations (TIA)
TIA-568-C.0 titled Generic Telecommunications
Cabling for Customer Premises.
The Fluke Networks DTX CableAnalyzer with Fiber
Modules provides a reliable method for
loss-length certification.
4
Fiber Best Practice Loss-Length (Tier 1) Fiber
Certification
How it works
  • Loss-length certification is a test for the
    overall loss over a fiber link. It requires an
    optical loss test set (OLTS) - or at a minimum, a
    light source and power meter set. To measure
    loss, an output source on a main unit connected
    to one end of the link-under-test will emit a
    continuous wave at specified wavelengths, while a
    remote unit on the far end measures the optical
    power being received to calculate the total
    amount of light lost. Commonly referred to as
    Tier 1 certification, it includes
  • confirming cable length
  • checking for polarity
  • measuring the fiber links overall attenuation to
    ensure that it is less than the specified loss
    budget
  • After the measurement is made, it is then
    compared to industry cabling or channel
    application standards, or customized limits to
    ensure that it meets the requirements. Depending
    on the results, the tester will typically show
    either a PASS or FAIL. A passing measurement
    implies meeting the minimum requirements for
    infrastructure reliability and integrity in
    accordance with industry standards. A failing
    measurement, on the other hand, means
    noncompliance and suggests questionable
    installation quality and a network stability
    risk, requiring proper troubleshooting procedures
    and subsequent retesting to obtain a PASS result.

5
Fiber Best Practice Loss-Length (Tier 1) Fiber
Certification
Loss-length testing procedures
  • Verify polarity with a visual fault locator
    (VFL).
  • Connect the main (or power meter) to the remote
    (or source) using a test-reference cord.
  • Set and record a reference power level from the
    output source as the baseline for the subsequent
    power-loss calculation.
  • Connect the OLTS main and remote (or power meter
    and source) on opposite ends of the fiber link to
    be tested.
  • Measure the level of optical power being
    transmitted through the link, ensuring that the
    wavelength settings on both the source and meter
    are matching.
  • Compare it to the reference power level recorded
    earlier the difference will be the total amount
    of light lost. If this amount is within the
    limits for the tested fiber length, as specified
    by the relevant standards, the fiber link passes.
  • Note that newer, advanced OLTS like Fluke
    Networks DTX-CLT CertiFiber or DTX-1800
    CableAnalyzer with fiber modules will
    automatically measure the length of the fiber
    being tested, eliminating the possibility of
    errors from unreliable methods such as pacing out
    distances.

6
Fiber Best Practice Loss-Length (Tier 1) Fiber
Certification
Additional fiber best practice resources
To download other Fiber Best Practice white
papers and for additional resources, visit
www.flukenetworks.com/FiberBP
7
(No Transcript)
