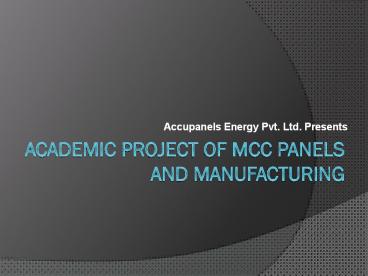

Academic project of MCC Panels and manufacturing

1
Academic project of MCC Panels and manufacturing

• Accupanels Energy Pvt. Ltd. Presents

2

• MCC comprises of various number of electrical
  segments associated through a typical power
  transport. The motor is controlled with a clear
  beginning game plan both of one  in the
  accompanying sort starters
• DOL starter
• Star-Delta starter
• Autotransformer starter

3
Star Delta Starter
Autotransformer starter
4

• Any one is pertinent with the clear measure of
  motor power rating.
• 0-5 HP,5-20 HP or more 20 HP are the significant
  varieties.
• Both physically and also naturally a motor can be
  controlled.
• In programmed mode, according to the guidelines
  from the control panel entire controlling
  conceivable.
• Manual controlling is conceivable with change
  over switches, push catches and so forth.

5

• Three stage acceptance motor is the one that we
  are utilizing here to control utilizing
  star-delta starter.
• A 415v, 3phase acceptance motor with a typical HP
  can be successfully controlled through the
  strategy.
• Defensive transfers are utilized for both
  assurance and additionally to lock and unlatch.
• The yield from the transfer is given to a
  mechanical clock through which the coveted time
  control is conceivable.
• At that point the clock out is given to the
  star-delta contactor.

6

• As the transfer switches , the principle
  contactor additionally goes high and motor will
  work in star mode.
• At the point when clock finishes its working, the
  delta contactor loop stimulates and motor will
  keep running in delta mode.

7

• The exchanging occurs between the star-delta
  contactors.
• MCB's are performing assurance for the whole
  control units under three conditions.
• a. Manual push
• b. Over load
• c. Short out
