Cisco GLC-LH-SMD optical module

1

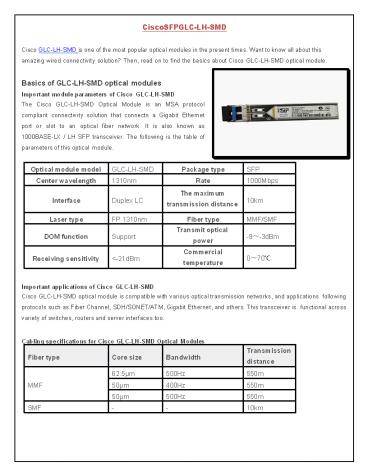

CiscoSFPGLC-LH-SMD Cisco GLC-LH-SMD is one of
the most popular optical modules in the present
times. Want to know all about this amazing wired
connectivity solution? Then, read on to find the
basics about Cisco GLC-LH-SMD optical
module. Basics of GLC-LH-SMD optical
modules Important module parameters of Cisco
GLC-LH-SMD The Cisco GLC-LH-SMD Optical Module is
an MSA protocol compliant connectivity solution
that connects a Gigabit Ethernet port or slot to
an optical fiber network. It is also known as
1000BASE-LX / LH SFP transceiver. The following
is the table of parameters of this optical
module.
Optical module model GLC-LH-SMD Package type SFP
Center wavelength 1310nm Rate 1000Mbps
Interface Duplex LC The maximum transmission distance 10km
Laser type FP 1310nm Fiber type MMF/SMF
DOM function Support Transmit optical power -9-3dBm
Receiving sensitivity lt-21dBm Commercial temperature 070?
Important applications of Cisco GLC-LH-SMD Cisco
GLC-LH-SMD optical module is compatible with
various optical transmission networks, and
applications following protocols such as Fiber
Channel, SDH/SONET/ATM, Gigabit Ethernet, and
others. This transceiver is functional across
variety of switches, routers and server
interfaces too. Cabling specifications for
Cisco GLC-LH-SMD Optical Modules
Fiber type Core size Bandwidth Transmission distance
MMF 62.5µm 500Hz 550m
MMF 50µm 400Hz 550m
MMF 50µm 500Hz 550m
SMF - - 10km
2
Cisco GLC-LH-SMD compatible switch models Listed
here are a few switch models compatible with
Cisco GLC-LH-SMD . You can find more about the
compatible switches at the detailed page of the
GLC-LH-SMD optical module
Switch model Switch model
2960S-F48TS-L Cisco WS-C3750X-48PC
WS-X4624-SFP-ECisco 6500 N9K-C92160YC-XCisco 3900
WS-C2960X-48LPD-L WS-C3560E-48PD
WS-C3650-48FS Cisco WS-C4500X-40X-ES
C6800-32P10G(-XL)Cisco Nexus SPA-2X1GE-V2Cisco ASR 9000
WS-C2960XR-48TD-I WS-C3650-48TQ
IE-2000-16PTC-G-ECisco 4500 WS-X4448-GB-SFPCisco 6500
