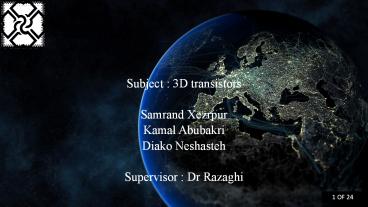

3D transistor

1
?? ???? ???

• Subject 3D transistors
• Samrand Xezrpur
• Kamal Abubakri
• Diako Neshasteh
• Supervisor Dr Razaghi

1 OF 24
2
index

• Brief history
• Transistor basics
• Moores law
• High k
• PLANAR MOSFET
• Channel Pinch-Off
• Analysis and Design of Tri-Gate MOSFET with High
  Dielectrics Gate 3D transistors
• Characteristics of Tri-gate transistors

2 OF 24
3
Brief history

• T-R-A-N-S-I-S-T-O-R TRANsfer resiSTOR
• 1947 John Bardeen, Walter Brattain and William
  Schokley at Bell laboratories built the first
  working point contact transistor (Nobel Prize in
  Physics in 1956)
• 1925 Julius Lilienfield patents the original
  idea of field effect transistors
• 1935 Oskar Heil patents the first MOSFET
• 1963 Frank Wanlass at Fairchild describes the
  first CMOS logic gate (nMOS and pMOS)
• 1970 Processes using nMOS became dominant
• 1980 Power consumption become a major issue.
  CMOS process are widely adopted.

3 OF 24
4
Transistor basics

• The goal of a transistor is to act as a very high
  speed electrical switch.
• Ideally a transistor needs to do three things
• Allow as much current to flow when it's on
  (active current)
• Allow as little current to flow when it's off
  (leakage current)
• Switch between on and off states as quickly as
  possible (performance)

4 OF 24
5
Moores law

• In 1963 Gordon Moore predicted that the number of
  transistors on an integrated circuit doubles
  approximately every two years which is achieved
  by scaling down the transistor size.
• According to Intel, Tri-Gate was implemented
  because it would not have been possible to
  continue Moore's law at 22nm and below without a
  major transistor redesign. With Tri-Gate
  transistors, Intel claims to have extended
  Moore's law at least another two years.

5 OF 24
6
High k

• The term high-? dielectric refers to a material
  with a high dielectric constant ? (as compared to
  silicon dioxide)
• Silicon dioxide (SiO2) has been used as a gate
  oxide material for decades.
• Replacing the silicon dioxide gate dielectric
  with a high-? material allows increased gate
  capacitance without the associated leakage effects

6 OF 24
7
7 OF 24
8
8 OF 24
9
PLANAR MOSFET

• MOSFET

9 OF 24
10
Channel Pinch-Off
10 OF 24
11
3D transistors
11 OF 24
12
Modifications in planar transistors..
12 OF 24
13
13 OF 24
14
14 OF 24
15
Analysis and Design of Tri-Gate MOSFET with High
Dielectrics Gate

• In any normal transistor the drain to
  source current is defined by the equation

The drain source in transistor 3d is
proportional to ??2?? ?? ratio. Here H is
the width of the transistor and drain to
source current is given by the equation
15 OF 24
16
16 OF 24
17
Gallium Arsenide
µ 8500 cm/V2
Cox 10.588 n F
L .045 µm
2H 10 µm
W 22.5 µm
H 5 µm
Suppose the threshold voltage for transistor
Vt 0.6 V and the gate to source voltage Vgs
1 V, 2 V and 3 V
planar
Tri_gate
17 OF 24
18
18 OF 24
19
19 OF 24
20

2?????? ???? ??????
gm 2Id Vgs-Vt
?? ?????? ?????? VDD
20 OF 24
21
Characteristics of Tri-gate transistors
21 OF 24
22
tri-GATE transistors BENEFITS

• Dramatic performance gain at low operating
  voltage , better than Bulk, PDSOI,FDSOI
• 37 performance increase at low voltage
• 50 power reduction at constant performance
• Improved switching characteristics
• Higher drive current for a given transistor
• Only 2 3 cost adder

22 OF 24
23
Reference

• Process Integration, Devices, and Structures
  (PDF).International Technology Roadmap for
  Semiconductors2006 Update.
• MICROELECTRONIC CIRCUITS 5/e
• Fundamentals-of-Microelectronics-Behzad-Razavi
• Analysis and Design of Tri-Gate MOSFET with High
  Dielectrics GateViranjay M. Srivastava, Setu P.
  Singh Department of Electronics and Communication
  Engineering,Jaypee University of Information
  Technology, Solan - 173234, India.Viranjay_at_ieee.or
  g

23 OF 24
24
24 OF 24
