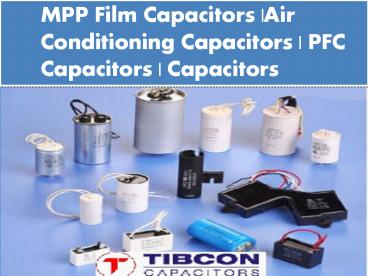

MPP Film Capacitors Air Conditioning
Capacitors PFC Capacitors Capacitors
2
Metallized Polypropylene (MPP) Film Capacitor or
polymer film capacitors are generically also
called film caps. The PFC capacitors (Power
Film) are electrical capacitors which contain
insulating plastic film as the dielectric,
sometimes it may combine with paper as a carrier
of the electrodes. MPP Film Capacitors and PFC
capacitors are available in our Tibcon.
3
The dielectric films, counting on the specified
strength, draw during a special method to a
particular skin thickness, and are then supplied
with electrodes. The electrodes of PFC capacitors
is also Zinc or metalized aluminum applied onto
the surface of the film, or a separate bimetallic
foil. These two semiconductor layers are cut into
a cylinder-shaped wound.
4
The foremost common types of capacitors for using
in electronic equipment are Film capacitors,
Ceramic capacitors, and electrolytic capacitors.
These are mostly used in DC and AC electronics
circuits and microelectronics.
5
Though the construction techniques and materials
used for giant power film capacitors are terribly
similar for normal power film capacitors.
Capacitors with low to high power ratings for
applications in power systems and electrical
installations are usually classified on an
individual basis, for historical reasons.
6
As fashionable equipment gained the capability to
handle power levels that are the exclusive domain
of "electrical power" parts, the excellence
between the "electronic" and "electrical" power
ratings has subsided distinct. Within the past,
the boundary between these PFC Capacitor was
around at a reactive power of 200 volt-amperes.
7
For More Details Visit Our Website http//tibcon.
net/productdetails/metalized-polypropylene-film
