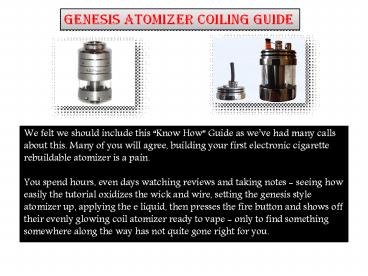

Genesis Atomizer Coiling Guide
We felt we should include this Know How Guide
as weve had many calls about this. Many of you
will agree, building your first electronic
cigarette rebuildable atomizer is a pain. You
spend hours, even days watching reviews and
taking notes - seeing how easily the tutorial
oxidizes the wick and wire, setting the genesis
style atomizer up, applying the e liquid, then
presses the fire button and shows off their
evenly glowing coil atomizer ready to vape - only
to find something somewhere along the way has not
quite gone right for you.
2
Step 1 CHECKLIST
Have the following home tools close at hand

• A Lighter
• A Screwdriver
• Wire Cutters
• A Paperclip
• An Awl or similar fine pointed tool

The following items a required for building the
Genesis Style Atomizer

• Gensis Atomizer
• A pre-oxidized and primed stainless steel mesh
  wick
• Kanthal wire for the coil
• Drill bit

3
Step 2 PREPARE THE WICK
The first thing we need to do is prepare the wick
and make sure it fits comfortably in the Atomizer
wick hole. Follow my instructions below

• Straighten out the paperclip completely
• Remove the wick from the bottle of VG and insert
  it on to the paperclip
• Using the lighter, hold one end of the paper clip
  and burn all VG off the wick (If it lights on
  fire, leave it until the fire goes out)
• A Your wick is now ready for use.

4
Step 3 MAKE THE COIL
The following items are neccessary for this step

• Taking the drill bit and the wire
• (I reccommend Kanthal AWG 29, explained why here)
• Place one end of the wire on the drill bit and
  hold it down with your thumb
• Wrap as tightly as you can 5/6 Wraps (1.0 ohm),
  6/7 Wraps (1.3 ohm) or 7/8 wraps (1.5 ohm)
• The result will end up with this.
