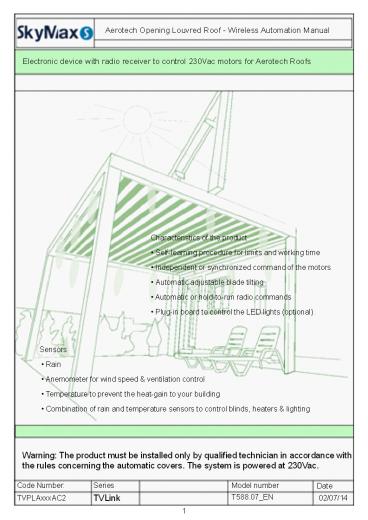

Aerotech Opening Louvred Roof - Wireless
Automation Manual
Electronic device with radio receiver to control
230Vac motors for Aerotech Roofs
Characteristics of the product
Self-learning procedure for limits and working
time Independent or synchronized command of the
motors Automatic adjustable blade tilting
Automatic or hold-to-run radio commands
Plug-in board to control the LED lights (optional)
Sensors
Rain
Anemometer for wind speed ventilation
control Temperature to prevent the heat-gain to
your building Combination of rain and
temperature sensors to control blinds, heaters
lighting
Warning The product must be installed only by
quali?ed technician in accordance with the rules
concerning the automatic covers. The system is
powered at 230Vac.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
1
2
Correlated products
Plug-in boards for LED control
TVSTRD00PSI24 for 1-colour LED lightings. Independ
ent or simultaneous control of 3 output (max. 60W
each). 24Vdc power supply.
TVRGB00PSI24 for RGB (red, green, blue) LED
lightings. 24Vdc power supply (max. 60W each of 3
output).
TVRGBW00PSI24 for RGBW (red, green, blue
white) LED lightings. Independent control of RGB
output and White output, by means of different
memorization of transmitter channels.
24Vdc power supply (max. 60W each of 4 output).
EVO Transmitter
TVEVO868N42P 42 channels hand transmitter with
wall ?xing support, ideal for multi-group
commands.
group
- group
selection
selection
colors 1 colors 2
closing slat
Control of motors for roofs
opening slat 1

opening slat 2
RGB lightings 1-colour lightings 230V
lightings ventilation-heating screens
opening
slat 3
OPEN STOP
colors 1 or 2 selection cycle activation
preset 1 - 2 - 3 - 4 increase/decrease
CLOSE
OFF
GREEN MOUSE Wall/table transmitter with light
sensor
TVTSL868N30
Wireless transmitter for the automatic control of
the brightness in a room or under a pergola
covering. The user can adjust the brightness of
the location simply commanding the screen or the
pergola through the buttons, saving the desired
level. The level will be automatically kept in
the time by Green Mouse, as the variation of the
natural light.
WIND SENSOR
RAIN SENSOR
TEMPERATURE PROBE
ANEM4
TMP150
RAIN101
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
2
3
Index
1 Wiring and adjustments
--------------------------------------------------
--------- ----------------------------------------
-------------------
page 4
2 Control unit con?guration
page 5 - 7

Pergola with 1 motor Pergola with 2 independent
motors Pergola with 2 synchronized motors
3 Transmitters memorization
--------------------------------------------------
---------
page 8 - 9
3.1 Memorization of 7 channels transmitter 3.2
Memorization of automatic commands in pair 3.3
Memorization and use of Green Mouse 3.4
Memorization of hold-to-run commands in pair 3.5
Memorization of a transmitter with an already
memorized transmitter
4 Transmitters deletion
--------------------------------------------------
---------
page 10
4.1 Deleting a transmitter 4.2 Deleting a
transmitter with an already memorized
transmitter 4.3 Deleting all the transmitters
5 Sensors
--------------------------------------------------
---------------------------------------
page 11 - 12
5.1 Wind sensor 5.2 Wind sensor threshold 5.3
Rain sensor 5.4 Activation/Deactivation of the
rain sensor using a transmitter 5.5 Temperature
sensor 5.6 Activation/Deactivation of the
temperature sensor 5.7 Snow condition
temperature sensor combined with rain sensor 5.8
Activation/Deactivation of the combination of
temperature and rain sensors
6 Memorization of the user angles
--------------------------------------------------
page 13 page 14
7 Troubleshooting
--------------------------------------------------
------------------- ------------------------------
-----------------------------
7.1 Replacing the product
8 Technical speci?cations
page 15
Warnings
The above mentioned product must be installed
only by quali?ed technical personnel in
compliance with the standards of automatic
openings. All connections must be rated for a
single-phase power supply of 230V. For the
disconnection from the power line, use an
all-pole switch with contact with an opening of
at least 3.5 mm.
Only suitable materials for the connections must
be used to guarantee insulation that complies
with current standards on the subject of
electrical safety. The product executes just
movement controls all the necessary safety
devices are to be seen separately. Incorrect
wiring will cause incorrect functioning impairing
the safety purpose for which the product has been
designed so that people injuries could occur
failure to follow instructions can cause personal
injury and/or property damage.
Keep the 230V wires from the low voltage safety
wires separately. The earth-wires must be ?xed by
means of an additional fastening nearby the
terminals this fastening has to be done by
quali?ed technical personnel during the
installation phase. The appliance has been tested
with a power supply wire type H05VV-F the power
supply wires for outdoor use must have better
characteristics than the ordinary wires type
H05RN-F. The safety devices have to be
in conformity with EN12978. The product is in
conformity with the RAEE and RoHS directive.
In the view of a constant development of their
products, the manufacturer reserves the right
for changing technical data and features without
prior notice.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
3
4
1. Wiring and adjustments
Memory (par. 7.1)
P1 and P2 Dip switch
DSW1
L1
AERIAL
230Vac
P1 P2
RAIN sensor
Temperature sensor L2 L3
WIND sensor
Memoria
Plug-in board for LED lights (optional)
Attention!
Power supply for plug-in board (12-24Vdc)
The 230Vac input of the electronic board and the
motors output are protected by a 5A fuse.
M1 M2
IN
Ground connections
between motors and input
SIGNAL
16 RF AERIAL
1 2 3 4 5 6 7 8
230 Vac (Line)
17 GND AERIAL
230 Vac (Neutral)
18 TEMPERATURE SENSOR (BLACK) 19 TEMPERATURE
SENSOR (WHITE) 22 GND
CLOSING MOTOR 1 COMMON MOTOR 1 OPENING MOTOR
1 OPENING MOTOR 2 COMMON MOTOR 2 CLOSING MOTOR 2
23 12-24Vdc (Plug-in board for LED lights)
DIP 1-2-3 Setting of wind sensor threshold Motor
control mode
11 WIND SENSOR (BLUE)
12 WIND SENSOR (BROWN) 13 RAIN SENSOR
(WHITE,12V) 14 RAIN SENSOR (BLUE, signal) 15 RAIN
SENSOR (YELLOW, GND)
Synchronized, two motors mechanically connected
or controlled at the same time Independent, one
or two motors not mechanically connected
DIP 4-5
LED COLOUR STATUS
MEANING
L1 L2
RED RED
ON
Power ON
Priority
Flashes sequences One ?ash every 10 sec. Two
quick ?ashes every 10 sec. Three quick ?ashes
every 10 sec. Four quick ?ashes every 10
sec. Five quick ?ashes
ALARMS
Water draining alarm (par. 5.3) Rain alarm (par.
5.3)
Ice / Snow alarm (par. 5.5 - 5.7) Wind alarm
(par. 5.1)
Built-in motor limit switch activated Synchronized
Mode activated Synchronized Mode activated
(during the con?guration) Independent Mode
activated (during the con?guration)
L3
BLUE
ON
One ?ash every sec. One ?ash every 2 sec.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
4
5
2. Control unit con?guration
At the ?rst power-on, the control unit emits an
intermittent sound for 2 minutes and L3 ?ashes,
this means that the system needs to be
con?gured. After recognizing the right product
application among the 3 reported below, follow
the proper con?guration procedure.
Attention in case of a wrong selection of the
application it will be necessary to repeat the
correct con?guration procedure.
Aerotech Opening Louvred Roof With 1 Motor
1. CONFIGURATION OF MOTOR 1
1.1 Set DIP4 and DIP5 to OFF.
ON
1
2
3
4
5
6
1
1.2 Press at the same time P1 and P2 for 5
seconds, the buzzer emits an intermittent sound
and L3 ?ashes.
P1 P2
...
5 sec.
1
1.3 Move motor 1 with P1 (closing) and P2
(opening). If the direction is wrong, invert the
wires corresponding to the motor phases
(terminals 3 and 5).
1.4 Check that the manoeuvre stops because of
current absorption threshold (L2 ON) only when
the limit switch is reached.
2. SELF-LEARNING OF THE LIMITS 2.1 Press quickly
2 times P1 and P2 at the same time, keeping
pressed the second time for 5 seconds, the buzzer
emits a fast intermittent sound.
P1 P2
P1 P2
...
5 sec.
lt 1 sec.
The control unit automatically performs the
following steps

Self-learning of complete closing. Self-learning
of complete opening.
Each step the buzzer emits faster intermittent
sounds, at the end it stops.
2.2 DO NOT change the DIP con?guration. This
modi?cation would be signalled by a new
intermittent sound and the ?ashing of L3, and it
would require a new con?guration procedure.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
5
6
Pergola with 2 independent motors
1. CONFIGURATION OF MOTOR 1 1.1 Set DIP4 and DIP5
to OFF.
ON
2
1
2
3
4
5
6
1.2 Press at the same time P1 and P2 for 5
seconds, the buzzer emits an intermittent sound
and L3 ?ashes.
1
P1 P2
...
5 sec.
1 2
1.3 Move motor 1 with P1 (closing) and P2
(opening). If the direction is wrong, invert the
wires corresponding to the motor phases
(terminals 3 and 5).
1.4 Check that the manoeuvre stops because of
current absorption threshold (L2 ON) only when
the limit switch is reached.
2. CONFIGURATION OF MOTOR 2
2.1 Set DIP4 to ON and DIP5 to OFF.
ON
1
2
3
4
5
6
2.2 Move motor 2 with P1 (closing) and P2
(opening).
If the direction is wrong, invert the wires
corresponding to the motor phases (terminals 6
and 8). 2.3 Check that the manoeuvre stops
because of current absorption threshold (L2 ON)
only when the limit switch is reached.
3. SELF-LEARNING OF THE LIMITS 3.1 Press quickly
2 times P1 and P2 at the same time, keeping
pressed the second time for 5 seconds, the buzzer
emits a fast intermittent sound.
P1 P2
P1 P2
...
5 sec.
lt 1 sec.
The control unit automatically performs the
following steps, ?rst for motor 1 then for motor
2

Self-learning of complete closing. Self-learning
of complete opening.
Each step the buzzer emits faster intermittent
sounds, at the end it stops.
3.2 DO NOT change the DIP con?guration. This
modi?cation would be signalled by a new
intermittent sound and the ?ashing of L3, and it
would require a new con?guration procedure.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
6
7
Pergola with 2 synchronized motors
1. CONFIGURATION OF MOTOR 1 AND MOTOR 2 1.1 Set
DIP4 to OFF and DIP5 to ON.
ON
1
2
3
4
5
6
1 2 12
1.2 Press at the same time P1 and P2 for 5
seconds, the buzzer emits an intermittent sound
and L3 ?ashes.
P1 P2
...
5 sec.
1.3 Move the motors together with P1 (closing)
and P2 (opening). If the direction is wrong,
invert the wires corresponding to the motor
phases (terminals 3-5 for motor 1, 6-8 for motor
2). 1.4 Check that the manoeuvre stops because of
current absorption threshold (L2 ON) only when
the limit switch are reached.
2. SELF-LEARNING OF THE LIMITS 2.1 Press quickly
2 times P1 and P2 at the same time, keeping
pressed the second time for 5 seconds, the buzzer
emits a fast intermittent sound.
P1 P2
P1 P2
...
5 sec.
lt 1 sec.
The control unit automatically performs the
following steps, for both motors at the same time

Self-learning of complete closing. Self-learning
of complete opening.
Each step the buzzer emits faster intermittent
sounds, at the end it stops.
2.2 DO NOT change the DIP con?guration. This
modi?cation would be signalled by a new
intermittent sound and the ?ashing of L3, and it
would require a new con?guration procedure.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
7
8
3. Transmitter memorization
If the system is configured as Roof with 2
independent motors, it connects the memorization
by pressing P1 to motor 1 and P2 to motor 2. In
the other configurations the memorization is
possible using both P1 or P2. If the system is
configured as Roof with 2 independent motors, any
radio code can be associated to both motors,
memorizing it using P1 (Motor 1) first, then P2
(Motor 2).
3.1 Memorization of 7 channels transmitter
This con?guration permits the control of the
system with a 7 channel transmitter, in which
every channel is connected to a single operation
0 (CLOSED) 33
CH1 CH2 CH3 CH4 CH5 CH6 CH7
66
100 (OPEN) Hold-to-run opening STOP
Hold-to-run closing
lt 1 sec.

Press 2 times P1 or P2 (according
to the motor control mode) keeping pressed the
second time.

The buzzer emits a continuous sound. Press any
button of transmitter. Once the memorization is
successfully completed, the buzzer emits a
fast intermittent sound.
...
...
P1 or P2
last
----- 2 TIMES -----
3.2 Memorization of automatic commands in pair
This con?guration permits the control of the
system with a transmitter of at least 2
channels. Pressing a button the system stops if
the motor is moving in the opposite direction.
Opening (STOP)
Opening (STOP) Closing (STOP) Opening
(STOP) Closing (STOP) Opening
CH1 CH2 CH3 CH4 CH5 CH6 CH7
Opening STOP
CH5
Closing (STOP)
CH6 CH7
STOP
Closing
Closing
7 channels transmitter lt 1 sec.
3 channels transmitter
2 channels transmitter

Press 3 times P1 or P2 (according to the motor
control mode) keeping pressed the third time. The
buzzer emits a continuous sound. Press any button
of the pair to memorize. Once the memorization
is successfully completed, the buzzer emits a
fast intermittent sound.
...
...
P1 or P2
last
----- 3 TIMES -----
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
8
9
3.3 Memorization and use of Green Mouse (see
details at page 2)
Memorization
Complete the following two steps to memorize
Green Mouse 1. Carry out the procedure 3.2,
pressing button 2 or 3. 2. Carry out the
procedure 3.2, pressing button 2 and 3 at the
same time.
1
2
6
3
4
Use (see the instructions manual of the product
for further details) 1. Choose the desired light
level by opening or closing the
5
application with buttons 2 and 3. 2. Store the
desired level with button 4.
1 - Light s 2 - OPEN
3. Green Mouse will keep the set light level
moving automatically 3 - CLOSE button
4 - Light level memorization button 5 -
Activation/deactivation light control button 6 -
Signal and programming LED (red, blue)
the application to let the natural light in. 4.
Use button 5 to activate/deactivate the control
at any time.
3.4 Memorization of hold-to-run commands in pair
This con?guration permits the control of the
system with a transmitter of at least 2
channels. The system commands a movement only if
the button is kept pressed.
Hold-to-run
Hold-to-run opening Hold-to-run
closing Hold-to-run opening Hold-to-run
closing Hold-to-run opening STOP
CH1 CH2 CH3 CH4 CH5 CH6 CH7
opening
Hold-to-run opening STOP
CH5 CH6 CH7
Hold-to-run closing
Hold-to-run closing
Hold-to-run closing
7 channels transmitter
3 channels transmitter
2 channels transmitter
lt 1 sec.

Press 4 times P1 or P2 (according to the motor
control mode) keeping pressed the fourth
time. The buzzer emits a continuous sound. Press
any button of the pair to memorize. Once the
memorization is successfully completed, the
buzzer emits a fast intermittent sound.
...
...
P1 or P2
last
----- 4 TIMES -----
3.5 Memorization of a transmitter with an already
memorized transmitter
The new transmitter must have the same (or
higher) number of buttons as the memorized
one. At the end of procedure it will have the
same functioning of the memorized transmitter.
Memorized
Memorized
NEW

Press P3 of the transmitter already memorized.
The buzzer emits a continuous sound.

Press the button of the pair or any in a
7 channels transmitter to copy. The buzzer stops
for 1 second and emits the sound again.

Press the button to memorize of the
new transmitter. Once the memorization is
successfully completed, the buzzer emits a
fast intermittent sound.
...
1 sec.
within 5 sec.
within 5 sec.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
9
10
4. Transmitters deletion
If the system is configured as a Roof with 2
independent motors, it connects the deletion by
pressing P1 to motor 1 and P2 to motor 2. In the
other con?gurations the deletion is possible
using both P1 or P2.
4.1 Deleting a transmitter lt 1 sec.

Press 5 times P1 or P2 (according to the motor
control mode) keeping pressed the ?fth time. The
buzzer emits a continuous sound. Press the button
of the pair or any in a 7 channels transmitter to
delete within 10 seconds. Once the memorization
is successfully completed, the buzzer emits a
fast intermittent sound.
...
...
P1 or P2
last

----- 5 TIMES -----
within 10 sec.
4.2 Deleting a transmitter with an already
memorized transmitter
Memorized
To delete

Press P3 of the transmitter already memorized.
The buzzer emits a continuous sound. Press the
button of the pair or any in a 7 channels
transmitter to delete within 10 seconds. Once the
memorization is successfully completed, the
buzzer stops sounding.
P3 3 times
...
within 5 sec.
4.3 Deleting all the transmitters lt 1 sec.

Press 6 times P1 or P2 keeping pressed the sixth
time. The buzzer emits a fast intermittent sound
for about 10 sec. Release when the sound
becomes continuous.
10 sec.
...
...
P1 or P2
last
----- 6 TIMES -----
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
10
11
5.1 Wind sensor
The wind sensor (ANEM4, 4 pulses/rotation)
detects the wind speed. It has the highest
priority among the sensors. If the alarm is
active, the control unit moves the slats at 33
of the opening. The device does not perform any
command during the status of alarm and it resumes
its normal operation when the alarm is not active
anymore.
The alarm is off when the sensor detects for 60
seconds a speed lower than the set threshold.
5.2 Wind sensor threshold
DIP 1 DIP 2 DIP 3
Km/h 40
OFF OFF OFF OFF ON
OFF OFF ON
OFF ON
45
With DIP SWITCH 1, 2 and 3 it is possible to set
the wind speed alarm threshold (Km/h)
OFF ON
50
ON
55
OFF OFF ON
OFF ON
60
ON
65
ON
OFF ON
70
ON
ON
75
5.3 Rain sensor
When the sensor detects the rain and the alarm is
activated, the device positions the slats of the
Roof in closed position. The device doesnt
perform any command during the status of alarm.
The alarm is off when the sensor doesnt detect
the presence of the rain for 20 seconds. By
default the sensor is activated.
Functioning of the system AFTER the rain alarm
(Water draining)
Once the rain alarm is off, for the next 6 hours,
as soon as a command of automatic movement sent
by transmitter is received, the control unit will
move the slats to 25, to allow the water
draining. For 4 minutes the control unit will
perform just hold-to-run commands, switching off
the alarm status.
5.4Activation/Deactivation of the rain sensor
using a transmitter
In order to perform this procedure at least one
transmitter must be memorized (par. 3), and it
must be performed when the system is stopped. By
default the sensor is activated.
10 sec.
10 sec.
4 sec.
Activation
Deactivation
Press for 10 sec. the button STOP of
transmitter. The buzzer emits for 4 sec. a
continuous sound.
Press for 10 sec. the button STOP of
transmitter. The buzzer emits 2 beeps.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
11
12
5.5 Temperature sensor
The sensor (NTC 10K/3435K) detects the
temperature that could cause the freezing of the
pergola slats. If it is under 2C the alarm is
activated, then the control unit moves the slats
at the 66 of the opening. The alarm is off when
the temperature is over 3C. The control unit
performs just hold-to-run commands during the
status of alarm, and resumes its normal operation
when the alarm is not active anymore. By default
the sensor is deactivated.
5.6 Activation/deactivation of the temperature
sensor
lt 1 sec.
lt 1 sec.
...
...
P1
last 5 sec.
P1
last 5 sec.
----- 7 TIMES -----
----- 7 TIMES -----
Activation (possible only if the sensor is
connected) Deactivation

Press 7 times P1 keeping pressed the seventh time

Press 7 times P1 keeping pressed the seventh
for 5 sec.
time for 5 sec.

The buzzer emits for 4 sec. a continuous sound.

The buzzer emits 2 beeps.
5.7 Snow condition temperature sensor combined
with rain sensor
To manage the alarm related to the condition of
snow its necessary combine temperature sensor
and rain sensor. The alarm is on when the
temperature is under 2C and the rain has been
detected, then the control unit moves the slats
at the 66 of the opening. The alarm is off when
the temperature is over 3C or when there is no
rain detection. The control unit performs just
hold-to-run commands during the status of alarm,
and resumes its normal operation when the alarm
is not active anymore. By default the combination
is deactivated.
5.8Activation/Deactivation of the combination of
temperature and rain sensors
lt 1 sec.
lt 1 sec.
...
...
P2
last 5 sec.
P2
last 5 sec.
----- 7 TIMES -----
----- 7 TIMES -----
Activation of Rain configuration (possible only
Deactivation of Rain configuration
if the temperature sensor is connected)

Press 7 times P2 keeping pressed the seventh time
for 5 sec.

Press 7 times P2 keeping pressed the seventh
time for 5 sec.

The buzzer emits a continuous sound.

The buzzer emits 3 beeps.
Note Once the Rain configuration is deactivated,
the control unit considers the previous
activation/deactivation status of the rain sensor
and temperature sensor.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
12
13
6. Memorization of the user angles
Use the following procedure to modify the default
angles of the Roof Blades related to the wind
alarm (33) or the temperature/rain alarm (66).
After the system configuration and having
memorized at least one transmitter, use this to
move the Roof blades to the desired angle, then
Wind alarm angle lt 1 sec.

Press 8 times P1 or P2 (according to the motor
control mode) keeping pressed the eighth time for
5 sec. The buzzer emits for 1 sec. a continuous
sound.
...

Roof automatically closes
last 5 sec.
P1 or P2
1 sec.
----- 8 TIMES -----
Temperature/rain angle lt
1 sec.

Press 9 times P1 or P2 (according to the motor
control mode) keeping pressed the ninth time for
5 sec. The buzzer emits for 2 sec. a continuous
sound.

...
Pergola automatically closes
P1 or P2
last 5 sec.
2 sec.
----- 9 TIMES -----
Reset the angles to factory setting lt 1 sec.

Press 10 times P1 or P2 keeping pressed the tenth
time for 5 sec. The buzzer emits for 3 sec.
a continuous sound.
...
last 5 sec.
P1 or P2
3 sec.
----- 10 TIMES -----
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date 02/07/14
TVLink
13
14
7. Troubleshooting
Problem
Solution
At the power-on the control unit emits
an intermittent sound and L3 ?ashes. The sound is
still present after the con?guration (and L3
?ashes).
The system needs to be con?gured. Refer to
chapter 2.
Repeat the procedure at chapter 2. DO NOT move
the DIP setting after the procedure. P1 and P2
must be pressed at the same time. The
time between the ?rst and the second pressure
must be less than 1 sec.
The con?guration procedure doesnt start
pressing two times P1 and P2.
Theres no continuous beep during a
transmitter memorization.
The time between a pressure and the next one must
be less than 1 sec.
Its not possible to memorize a transmitter.
The code is already in the memory or the memory
is full.
7.1 Replacing the product
In case of defective control unit, and if the
memory is still working, its possible to replace
the control unit keeping all the settings
memorized previously. Remove the defective
control unit and replace it with a new one when
the control unit is switched off, insert the
memory of the defective control unit to the new
one and set all the DIP as they were in the old
control unit. Switch the system on.
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
14
15
8. Technical speci?cations
Attention! The 230Vac input of the electronic
board and the motors output are protected by a 5A
fuse.
- Reception frequency
868,3 MHz (TVPLA868AC2) 916 MHz (TVPLA916AC2) 230
Vac
- Power supply
- Single output AC motor - Fuse protection -
Operating temperature range - Max. number of
transmitters
230 Vac - max. 1,5 A 5A ritardato (5x20, a
cartuccia) -20 - 45C
16
- Rain sensor
12 Vdc (max.100mA)
- Anemometer - Temperature probe
4 pulses/rotation (ANEM4) NTC (R10Kohm B3435K)
- Protection
IP54
- Material of the box and its cover
ThermoplasticABS(Not suitable for direct UV
exposure)
- In compliance with Directives
2006/95/EC, 2004/108/EC, 1999/5/EC
185 mm
70 mm 56 mm
18 mm
Model number T588.07_EN
Code Number TVPLAxxxAC2
Series
Date
TVLink
02/07/14
15
16
E - info_at_skymax.com.au
W - www.skymax.com.au T -1300 929 743
