Outside micrometer (1)

1

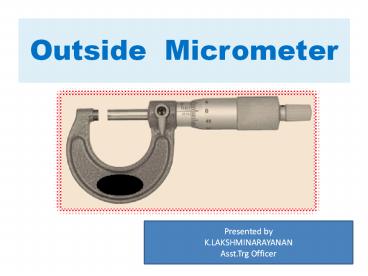

Outside Micrometer
Presented by K.LAKSHMINARAYANAN Asst.Trg Officer
2
Parts of Outside Micrometer

1. Anvil
2. Spindle face
3. Spindle
4. Barrel
5. Thimble
6. Ratchet stop
7. Spindle lock
8. Frame

3
Outside Micrometer
Reading on the Sleeve in 1 mm divisions 12.00 mm
Reading on the Sleeve in 0.5 mm division 0.50 mm
Thimble has passed 16 divisions line on the Sleeve (16 X 0.01 mm) 0.16 mm
TOTAL READING 12.66 mm
4
Measurement errors in Micrometer
5
Reading of dimensions measured using Vernier
Micrometer
Reading on the Sleeve (5 Main divisions x 1 mm) 5.000 mm
(2) No. of lines between 0.5 mm and the edge of the thimble (1 sub division x 0.5 mm) 0.500 mm
(3) Thimble has passed 28 divisions on line of the Sleeve (28 Thimble divisions x 0.01 mm) 0. 280mm
(4) Vernier line that coincides exactly with a Thimble Line (3 Vernier divisions x 0.001 mm) 0.003 mm
TOTAL READING 5.783mm
