Title: OBDII Tracker


1

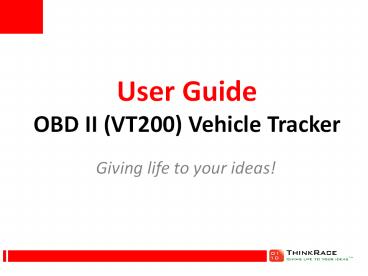

User Guide OBD II (VT200) Vehicle Tracker
Giving life to your ideas!
2
4
Please read this instructions carefully before
activating/installing the OBD II (VT200) GPS
Vehicle Tracker.
3
4
Introduction
4
Installation Position for OBD II
5
Indicators
All the indicators dark means equipment is power
off .All of them keep light when the device in
sleep state. Move the car to wake up it. Slow
blinking means the connectivity is slow/no
connection.
LED Flash quickly Flash slowly
Red Connecting to tracking system by GPRS No GPRS connection
Blue Auto ignition, read car ECU data Car stalls, do not support reading data
Green GPS position No GPS position
6
Steps for the Activation
  • Insert Sim Card into the OBD Tracker.
  • Call the number to check if it is ringing (it
    should not be not reachable or switched off).
  • The Sim number must have 2G data, Calls and SMS
    pack on it.
  • Check the device IMEI on Amber360.com.
  • Set Host/Server on the Device
  • (Set,888888,server,198.11.183.28,5088)
  • Set APN of the device by sending SMS on SIM card
    number as
  • apn405,18,rcomnet,,,
  • pw,apn,666999,airtelgprs.com
  • E. Find the device location by SMS
  • (Find,888888,Car)

7
SMS Commands Syntex
  • You will need to send text message from your
    mobile to the device. Please keep in mind that
    the SMS command starts with (, ends with ).
    Separated by, and all inputs character should
    be in English.
  • Server setting
  • Format (Set,Password,server,IP,Port)
  • (Set,Password,server,Domain,Port)
  • Example (Set,888888,server,198.11.183.28,5088)
  • (Set,888888,server, device.amber360.com,5088)
  • Expected SMS (IP 198.11.183.28,Port5088)
  • (IP device.amber360.com,Port5088)

8
Competitors Analysis -4
APN setting APN setting
Format (Set,Password,apn,Apnname)
Example (Set,888888,apn,CMNET)
Expected feedback (APNCMNET)
Query location Query location
Format (Find,Password,car)
Example (Find,888888,car)
Expected feedback http//maps.google.com/?q22.303560N,113.549666E
Password setting Password setting
Format (Set, Original-password,password, New-password) The initial password is 888888
Example (Set,888888,password,123456)
Expected feedback (password,123456)
9
Important Notes
  • The Sim card must have enough balance for Data,
    Calling and SMS.
  • The sim card must be inserted correctly.
  • Device should have been getting signals.
  • The device must be showing in Amber360.com.

10
Important Notes
Please read this manual carefully before
installation and online activation. Pictures are
for indication and illustration only. Please scan
here for APPs
11
ThinkRace Technology Website www. thinkrace.com
