OBD 2 Car tracker VT200

1

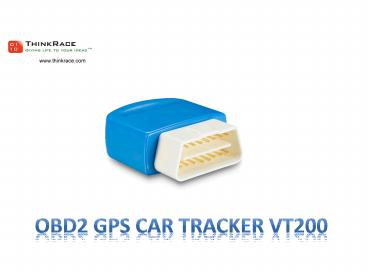

OBD2 GPS Car Tracker VT200
2
About VT200 OBD2 Car Tracker

• VT200 is a professional OBD? GPS tracker for
  vehicle, it can be used in taxi, ambulance,
  engineering vehicles. VT200 can do the real-time
  tracking of your car, it has functions like
  moving test, abnormal alarm, dead zone
  supplement, remote upgrade, and internal 3-axis
  accelerometer for motion detection and driving
  behaviour analysis.

3
VT200 Features

• Quad band GSM/GPRS frequencies 850/900/1800/1900
  MHz
• Internal superior sensitivity MTK chipset
• OBDII connectivity, easy to install
• Internal 3-axis accelerometer for motion
  detection and driving behaviour analysis
• Build-in backup battery with long standby time
• Internal GSM/GPS antenna
• Wide operating voltage range 8V to 28V DC

4
Basic Parameters
GSM Specifications GSM Specifications
Frequency 850/900/1800/1900MHz
GPS Specifications GPS Specifications
GPS Chipset MTK3337
Receive Frequency 1575.42MHz
Acquisition Sensitivity -145dBm
Tracking Sensitivity -160dBm
TTFF(Open Sky) Cold startlt 30s
TTFF(Open Sky) Hot startlt 2s
General Specifications General Specifications
Power lt 1.2W
Dimensions 594923mm
Weight 45g
Operation Temp -30?70?
Flash 16M bit
Electric Current Operation Current50mA Sleep Current8mA
Air Discharge 10kv
Transmit Protocol TCP/UDP
5
Know more about VT200

• Visit this link to know more about the VT200
  OBD-2 Car Tracker
• http//www.thinkrace.com/thinkrace-obd2-gps-car-tr
  acker-vt200.aspx
