Title: Membrane Keyboard — the Mechanism and Technicalities


1

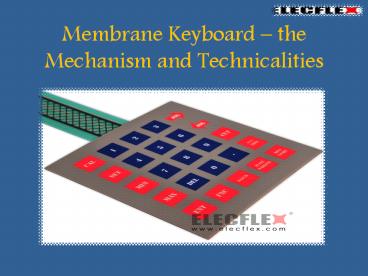

Membrane Keyboard the Mechanism and
Technicalities
2
Membrane Keyboard
  • Technological advancements have taken us a long
    way ahead. Starting from mobile devices to
    keyboards our life has upgraded to a great
    extent. If you remember the time of a few years
    back, we used to have large sized computer, and
    now we have our computers on our palm calling it
    Palmtop!!
  • In this same way, we have elevated the form of
    keyboards from mechanical ones to membrane
    keyboard which is not only helpful but also
    sleek, smooth, easier, and attractive to use!!

3
Layout of a Membrane Keyboard
  • We, at ElecFlex, have become a professional name
    in the industry of manufacturing such products.
    You can rely on us and provide us with all the
    details or designs, and we will make it come
    alive working on your fingertips. With years of
    experience, we know how to produce a membrane
    keyboard within your budget without any
    compromising with its quality.
  • But before you decide to have a membrane
    keyboard, you must what is it actually, how is it
    different from the age-old mechanical keyboards,
    and how does it work. Before digging into that
    part, check out their imagery difference for a
    better understanding

4
What is membrane keyboard and how does it work?
  • Of course, its a membrane keyboard and when you
    type with the keys, it shows the words on your
    screen thats what a keyboard does!! But these
    keyboards are a bit different in their making.
    How?
  • Membrane keyboards have three flexible different
    layers
  • Top Membrane Layer
  • Holes
  • Bottom Membrane Layers
  • Theres a conductive trace under the top layer of
    such keyboards which is the main mechanism of it.
    When you will press the key, this conductive will
    move via the holes which will let the pressure
    pads go by connecting with the conducive element
    placed above the bottom layer.

5
The keys of Membrane keyboards
The keys of Membrane keyboards can be either flat
or dome like depending on the device it will get
used for.
  • Flat Keys These are printed on the body of the
    keyboard or switch board thus not giving any
    sense of physical presence. As they are a little
    to use for computers, they are used on washing
    machines, ovens, and such other devices.
  • Dome Keys This type of membrane keyboards use
    domes on top of which letters are printed. They
    can either be laser-made or can be printed the
    decision depends on you because ElecFlex can do
    it accordingly. And we can actually provide you
    with the best version of these keyboards with
    rigid-PCB (copper leads) because of high
    durability and reliability.

Dome Keys of Membrane Keyboard
6
The difference between a Membrane Keyboard a
Mechanical Keyboard
  • All of you have certainly used mechanical
    keyboards one time or the other and thus the
    difference is quite obvious.
  • In mechanical ones, the switches are physically
    present under the keys but as you have know a
    membrane keyboard uses rubber dome or some
    conducive layer to let the keys work.
  • And you know what will be the best part of
    getting connected with us!! You dont have to
    wait much for the manufactured product to be
    delivered. Additionally, ElecFlex will be always
    there to help you resolve any kind of issue.

7
ElecFlex Technologies Inc.
  • Address
  • 405A, No.264
  • Baixia Road, Nanjing
  • China
  • Phone 86-2584507063Fax 86-25-84519330
  • Social Profiles

8
(No Transcript)
