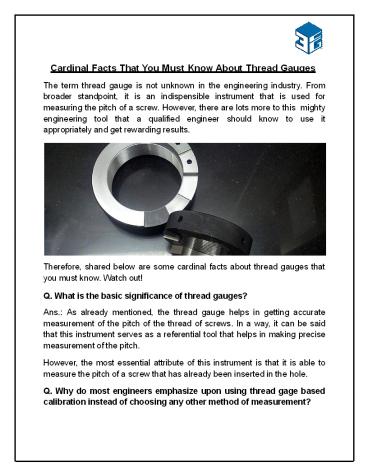

Cardinal Facts That You Must Know about Thread Gauges

1
Cardinal Facts That You Must Know About Thread
Gauges The term thread gauge is not unknown in
the engineering industry. From broader
standpoint, it is an indispensible instrument
that is used for measuring the pitch of a screw.
However, there are lots more to this mighty
engineering tool that a qualified engineer should
know to use it appropriately and get rewarding
results.
Therefore, shared below are some cardinal facts
about thread gauges that you must know. Watch
out! Q. What is the basic significance of thread
gauges? Ans. As already mentioned, the thread
gauge helps in getting accurate measurement of
the pitch of the thread of screws. In a way, it
can be said that this instrument serves as a
referential tool that helps in making precise
measurement of the pitch. However, the most
essential attribute of this instrument is that it
is able to measure the pitch of a screw that has
already been inserted in the hole. Q. Why do most
engineers emphasize upon using thread gage based
calibration instead of choosing any other method
of measurement?
2
When engineers implement Thread Gage Calibration,
they can economize on time because there is no
need to measure the thread pitch of a threaded
object separately. Q. What are the other common
names of this instrument? Ans. While thread
gauge is the most widely used term for this
instrument, other terms that are used in the
engineering industry to identify it are pitch
gauge and screw gauge. Q. What are Api Thread
Gages? Ans. API thread Gages is just a variant of
the basic thread gauge that we are talking
about. Speaking more specifically, these thread
gauges accomplish the standards set by the
American National Standard Institute or American
Society of Mechanical Engineers as well as the
American Petroleum Institute (API) standards.
This regulation is precisely applicable for the
size of the tapered pipe thread of this
instrument. Q. What parameters need to be
observed for using this instrument? Ans. The
commonest of parameter that every engineer should
consider before using thread gauge is to match a
specific variety of gauge with the pitch of the
thread that needs to be measured. Unfortunately,
there is no standardized method by virtue of
which you can identify the right type of thread
gauge for measuring any specific pitch of the
thread of a screw. All you can do is to carry out
the process of trial and error. However,
experience also pays well in this regard. Q. What
is to be done when the right thread gauge is
identified? Ans. Broadly speaking, you start
measuring the pitch when you succeed in finding
the right thread gauge for you. However, speaking
specifically, another phase of trial and run
starts from here. This is because you have to
match each of the leaf of the instrument
3
with the pitch you are supposed to measure until
you find the compatible one and can generate
accurate measurements. For more about our
