Title: All About Temperature Controllers


1

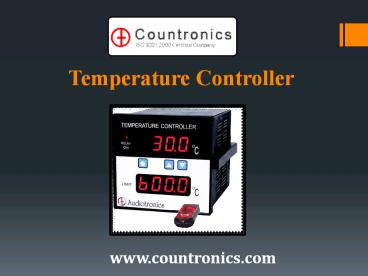

Temperature Controller
www.countronics.com
2
All About Temperature Controllers
  • A temperature controller popularly known as
    Humidity controller is an instrument used to
    control temperatures, mainly without any
    extensive operator involvement in the
    process. In a temperature control system, a
    controller will accept a temperature sensor
    such as a RTD or thermocouple as input
    and do comparison between the actual
    temperature and the desired temperature, or
    set point. It then provides an output to a
    control element.

3
  • The controller is usually forms just one
    part of a temperature control system.
    Therefore for selecting a proper
    temperature controller for the system, the
    entire system should be analyzed.
  • Types of Controllers and How Do They Work?
  • There are basically three types of controllers
  • On/Off Control
  • Proportional Control
  • PID Control
  • On/Off Control
  • It is the simplest form of a temperature control
    device. The output from the device is
    either on or off, without any middle state.
    Only when the temperature crosses the set
    point, the on/off controller will switch the
    output. Since the temperature crosses the
    set point to change the output state, the
    process temperature will go on cycling
    continually. It goes from below set point to
    above, and back below. For such systems, an
    on-off differential is usually added to
    controller operations.

4
  • Proportional Control
  • They are designed to eliminate the cycling
    associated with on-off control. A
    proportional temperature controller works by
    decreasing the average power supplied to
    the heater as the temperature approaches
    the set point. This effectively slows down
    the heater so that it will not overshoot
    the set point, but will approach the set
    point and maintain a stable temperature.
  • PID Control
  • The third of controller provides
    proportional with integral and derivative
    control, or PID. The PID controller combines
    proportional control with two additional
    adjustments (the integral and derivative
    control), which helps the unit to
    automatically compensate for changes in the
    system. It provides the most accurate and
    stable control of all the three control
    types.

5
  • It is recommended in systems where the
    load changes often and the controller is
    expected to automatically compensate for it.
  • Points to be kept in mind while selecting a
    Temperature Controller
  • Type of input sensor and temperature range
  • Type of output required
  • Control algorithm needed
  • Number and type of outputs

6
