Smart gps watch with sleek design

1

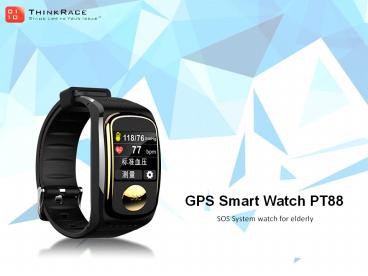

GPS Smart Watch PT88
SOS System watch for elderly
2
About GPS Smart Watch PT88
ThinkRace, give life to your ideas and this time
we are with something new, our new product thats
name is PT 88 (Personal Tracker) which is
basically for elderly people going to launch this
year. Fortunately, technology has introduced a
new way for caregivers and families to prevent
the dangers of wandering in senior loved ones. So
keeping in mind all the points which make you
happy and healthy we have designed this ultimate
product.
3
Functions
Real time location tracking
Three model positioning (GPSWiFiLBS)
Two-way communication
Photo book
One touch SOS
IP67 Waterproof
4
Features
Heart Rate Monitor
It has got heart rate sensor inside that contains
low energy consumption with high precision, it
monitors and analyzes the heart rate and giving
you the appropriate time and movement.
5
Real Time Location Tracking
Family can check those who under guardianship
peoples locations, tracks at anytime in
anywhere. Once the elder get lost, you will be
able to visualize the moving target from the GPS
system.
6
Two Way Communication
Smart calling and two ways communication it can
insert sim card when you need to have
communication with family.
7
One Touch SOS
When emergency happens to elder people, it will
go straight calling the family members by
pressing the SOS button.
8
IP67 Waterproof
It is the advanced version of waterproof level
it allows washing hands, face, raindrops and
splash water. Just to remind you that does not
immerse the watch in the water.
9
Specifications
GSM Chipset MTK2503D
GSM Frequency 900/1800 MHz or 850/1900 MHz
GPRS Class12, TCP/IP
GSM Antenna Built-in
GPS Chipset MTK3333
GPS Antenna Built-in
Position Accuracy lt10 meters
Tracking Sensitivity -159 dBm
Acquisition Sensitivity -143dBm
TTFF(open sky) Cold Startlt30 s
TTFF(open sky) Hot Startlt5 s
Screen 1 inch TFT(12896)
Battery 500 mA
Standby Time 72 hours
Operating Temperature -20?55?
Operating Humidity 5-95
SOS key Support
Size 57.433.816.5 mm
10
APP Using Guidance

• Login APP
• The guardian need to register or get the account
  from supplier before use the APP.

11
APP Using Guidance

• Fill the registration info and clickv

12
APP Using Guidance

• 2. Add device
• Adding tracker device by scanning the QR code or
  input the ID number/IMEI number.

13
APP Using Guidance

• 3. Live tracking
• User can live track both the position of
  GPS tracker and smart phone via the app. For
  indoor location, GPS tracker get the position by
  WiFi and LBS, For outdoor position, GPS tracker
  get position by GPS.

14
APP Using Guidance

• 4. Voice talkback
• User can send voice message to GPS
  tracker by pressing Hold down speak on smart
  phone, and user can also the press Call button
  on the GPS watch to record voice message and then
  send it to smart phone.

15
APP Using Guidance

• 5. Previous track playback
• Previous track could find the route map
  for nearly three months by choosing the beginning
  and ending time
• ? Setting time period to query the tracking
  history.
• ? Set the map scale.
• ? Pause /Play control.
• ? Display settings as below.

?
?
?
?
16
Thank You
For more information, visit us at http//www.thin
krace.in
