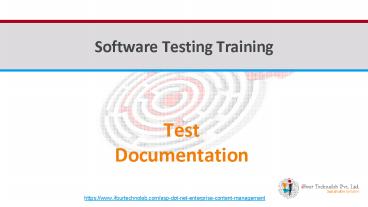

ASP.Net Practical Testing Documentation

1
iFour Consultancy
Test Documentation
https//www.ifourtechnolab.com/asp-dot-net-enterpr
ise-content-management
2
Test Documentation

• Test Plan
• Analyze the product
• Design the Test Strategy
• Define the Test Objectives
• Define Test Criteria
• Resource Planning
• Plan Test Environment
• Schedule Estimation
• Determine Test Deliverables

https//www.ifourtechnolab.com/asp-dot-net-enterpr
ise-content-management
3
Test Documentation

• Test Scenario

Test Scenario Requirement ID Test Scenario Description Test Cases
1 S1.1 Check the Login Functionality 1. Check system behavior when valid email id and password is entered. 2. Check system behavior when invalid email id and valid password is entered. 3. Check system behavior when valid email id and invalid password is entered. 4.
2 S1.2 Check Compose mail functionality
3 S1.3 Check the Archive mail functionality
4 S1.4 Check the Search mail functionality
5 S1.5 Check Forward mail functionality
6 S1.6 Check Mark as all Read functionality
https//www.ifourtechnolab.com/asp-dot-net-enterpr
ise-content-management
4
Test Documentation

• Test matrix Example Gmail

Project Gmail
Environment Staging / Server
Date 09-07-2018
Initial Author Tarang
Function to be Test Expected Result
Login Should login successfully
Send Email Should compose and send successfully
Fields length of field, type of field?? Mandatory/ Optional Possible value Possible value TC01 TC02 - M TC03 - M TC04
Login
Username Email M Valid/Invalid Valid x x x x
Password Password M Valid/Invalid Valid x x x x
Login Button M Yes/No Yes x x x x
Inbox Tab Link/button O Yes/No Yes x
Compose Email
Compose Button O Yes/No Yes x x
To URL M Valid/Invalid Valid x x
Subject Text field O Yes/No Yes x x
Body Text Area O Yes/No Yes x x
Send Button M Yes/No Yes x x x
Test case Result Pass Pass Fail Fail
https//www.ifourtechnolab.com/asp-dot-net-enterpr
ise-content-management
5
Test Documentation

• Test Case Example Gmail

Test case ID Test case Action Expected Result Actual Result
TC01 Insert Valid Credentials and go to Inbox It should login successfully and verify userthen go to Inbox Login successful and Verified successfully.Successful Redirecting on Inbox.
TC02 Login with valid credentialsCompose email and send Should login successfullyCompose and send email successfully Login successful and Verified successfully.Composed email and sent email correctly.
TC03 Login with valid credentialsCompose email and click on send Should login successfullyCompose and send email successfully Login successful and Verified successfully.Cant able to click on Send, Email not sent.
TC04 Login with valid credentialsCompose email and click on send without filling details Should login successfullyClicking on Send should throws error Login successful and Verified successfully.Clicking on Send without filling other details not throws error.
https//www.ifourtechnolab.com/asp-dot-net-enterpr
ise-content-management
6
Test Documentation

• Bug Report Example Gmail

Bug ID Testcase ID Bug Title Step to Reproduce Expected Actual Severity Priority Issue snap
G1 TC03 Email Send button Click is not working 1. Login with valid data2. Click on Compose3. Insert To email address4. Insert Subject5. Insert body text6. Click on Send button By clicking on Send button, It should be clickable and send email successfully When we click on Send button after inserting other details, button is not clickable. Major High
G2 TC04 Validation is not working 1. Login with valid data2. Click on Compose3. Click on Send without filling any other details By Clicking on Send button without filling any details, it should show alert box for validation Clicking on send button without filling any details, it doesnt shows any alert box. Minor Low
https//www.ifourtechnolab.com/asp-dot-net-enterpr
ise-content-management
7
Question Answer
https//www.ifourtechnolab.com/asp-dot-net-enterpr
ise-content-management
8

• Thank you
