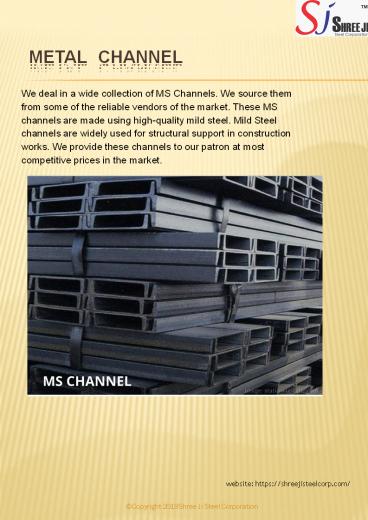

1METAL CHANNEL
We deal in a wide collection of MS Channels. We
source them from some of the reliable vendors of
the market. These MS channels are made using
high-quality mild steel. Mild Steel channels are
widely used for structural support in
construction works. We provide these channels to
our patron at most competitive prices in the
market.
website https//shreejisteelcorp.com/
2 Product Name Brand Type Material
Grade Material Place Of Origin Minimum Order
Quantity Application Usage
Metal Channel Shree Ji " C " IS 2062 Mild
Steel Kolkata/Durgapur 10 Metric Ton
Construction Work Structural support in
construction
website https//shreejisteelcorp.com/
3Metal Channel Sizes and Weights
Weight Weight
Size (in mm)
(in Kg/m) (in Kg/feet)
Metal Channel 75 x 40 6.800 2.073
Metal Channel 100 x 50 9.200 2.804
Metal Channel 75 x 40 (light) 5.000 1.524
Metal Channel 100 x 50 (light) 8.000 2.438
Metal Channel 75 x 40 (super light) 4.000 1.219
Metal Channel 100 x 50 (super light) 6.000 1.828
Metal Channel 125 x 65 12.800 3.901
Metal Channel 150 x 75 16.400 4.500
Metal Channel 150 x 76 17.700 17.700 5.394 5.394 5.394
Metal Channel 175 x 75 19.200 19.200 5.852 5.852 5.852
Metal Channel 200 x 75 22.200 22.200 6.766 6.766 6.766
Metal Channel 200 x 76 24.300 24.300 7.406 7.406 7.406
Metal Channel 225 x 80 24.000 24.000 7.315 7.315 7.315
Metal Channel 225 x 90 26.000 26.000 7.925 7.925 7.925
Metal Channel 250 x 82 34.200 34.200 10.424 10.424 10.424
Metal Channel 300 x 90 35.900 35.900 10.942 10.942 10.942
Metal Channel 400 x 100 49.500 49.500 15.087 15.087 15.087
website https//shreejisteelcorp.com/
4Rolling Tolerances of Metal Channels Rolling Tolerances of Metal Channels Rolling Tolerances of Metal Channels Rolling Tolerances of Metal Channels
Depth Tolerance Width of flange Tolerance
Up to 200 mm 2.5 mm Up to 100 mm 2 mm
gt 200 to 400 mm 3.0 mm
Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length.
website https//shreejisteelcorp.com/
5Metal Channel Chemical Composition (in max values) Metal Channel Chemical Composition (in max values) Metal Channel Chemical Composition (in max values) Metal Channel Chemical Composition (in max values) Metal Channel Chemical Composition (in max values) Metal Channel Chemical Composition (in max values) Metal Channel Chemical Composition (in max values)
Carbon Manganese Max Sulphur Max Phosporous Max Silicon Max
0.23 1.50 0.045 0.045 0.40 0.42
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03
Carbon
Equivalent
Metal Channel Mechanical Composition (in max values) Metal Channel Mechanical Composition (in max values) Metal Channel Mechanical Composition (in max values) Metal Channel Mechanical Composition (in max values) Metal Channel Mechanical Composition (in max values) Metal Channel Mechanical Composition (in max values)
Tensile Strength Min, Mpa Yield Stress, Min, MPa Yield Stress, Min, MPa Yield Stress, Min, MPa Elongation at gauge length 5.65 v?o Bend Test
mm lt20 mm 20-40 mm gt40 mm min min
410 250 240 230 23 3t (t is 3 times thickness)
