MS Plate

1

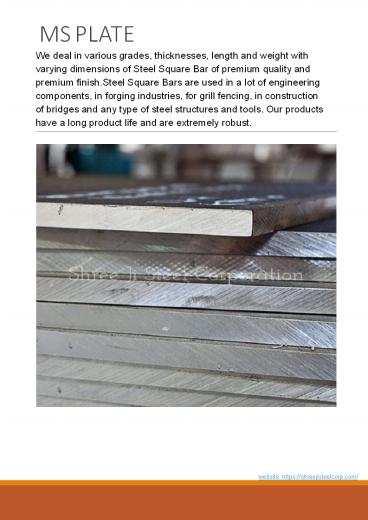

MS PLATE
We deal in various grades, thicknesses, length
and weight with varying dimensions of Steel
Square Bar of premium quality and premium
finish.Steel Square Bars are used in a lot of
engineering components, in forging industries,
for grill fencing, in construction of bridges
and any type of steel structures and tools. Our
products have a long product life and are
extremely robust.
website https//shreejisteelcorp.com/
2
Mild Steel Plate SJ SHREE JI IS 2062 Mild
Steel Kolkata/Durgapur 16 Metric Ton Hot
Rolled Plain Construction Work Structural
support in construction
Product Name Brand Material Grade
Material Place Of Origin Minimum Order
Quantity Surface Treatment Pattern Application
Features
website https//shreejisteelcorp.com/
3
MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights
Size (in mm) Weight Weight
Size (in mm) (in Kg/sq.m) (in Kg/sq.feet)
MS Plate 2 15.700 1.458
MS Plate 2.5 19.621 1.822
MS Plate 3 23.550 2.187
MS Plate 4 31.400 2.917
MS Plate 5 39.200 3.640
MS Plate 5.5 43.200 4.012
MS Plate 6 47.100 4.380
MS Plate 7 55.000 5.112
MS Plate 8 62.820 5.872
MS Plate 9 70.600 6.560
MS Plate 10 78.500 7.290
MS Plate 11 86.420 8.030
MS Plate 12 94.200 8.750
MS Plate 14 109.900 10.210
website https//shreejisteelcorp.com/
4
MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights
Size (in mm) Weight Weight
Size (in mm) (in Kg/sq.m) (in Kg/sq.feet)
MS Plate 16 125.600 11.668
MS Plate 18 141.320 13.129
MS Plate 20 157.000 14.585
MS Plate 22 172.700 16.044
MS Plate 25 192.600 17.893
MS Plate 28 219.800 20.420
MS Plate 32 251.200 23.337
MS Plate 36 282.600 26.254
MS Plate 40 314.000 29.172
MS Plate 45 353.250 32.817
MS Plate 50 392.500 36.464
MS Plate 56 435.400 40.449
MS Plate 63 494.600 45.949
MS Plate 71 557.400 51.784
website https//shreejisteelcorp.com/
5
MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights MS Plate Sizes and Weights
Size (in mm) Weight Weight
Size (in mm) (in Kg/sq.m) (in Kg/sq.feet)
MS Plate 75 588.750 54.696
MS Plate 80 628.000 58.343
MS Plate 90 706.500 65.635
MS Plate 100 785.000 72.928
MS Plate 110 863.500 80.222
website https//shreejisteelcorp.com/
6
Tolerances on width of MS Plate Tolerances on width of MS Plate Tolerances on width of MS Plate Tolerances on width of MS Plate
Length Width Thickness Tolerance (mm) (mm) (mm) on width Length Width Thickness Tolerance (mm) (mm) (mm) on width Length Width Thickness Tolerance (mm) (mm) (mm) on width Length Width Thickness Tolerance (mm) (mm) (mm) on width
up to and including 8000 up to and including 2000 up to and including 20 -0, 10mm
up to and including 8000 up to and including 2000 over 20 -0, 15mm
up to and including 8000 over 2000 up to and including 20 -0, 0.5 of width
up to and including 8000 over 2000 over 20 -0, 20mm
over 8000 all widths up to and including 20 -0, 0.5 of length
over 8000 all widths over 20 -0, 0.3 of length
Thickness Tolerance in percentage of Nominal Thickness Thickness Tolerance in percentage of Nominal Thickness
Less than 8mm 12.5, -5.0
From 8mm up to including 12mm 7.5, -5.0
Over 12mm /- 5.0
website https//shreejisteelcorp.com/
7
MS Plate Chemical Composition (in max values)
Carbon Manganese max Sulphur max Phosporous max Silicon max Carbon Equivalent
0.23 1.50 0.045 0.045 0.40 0.42
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03
MS Plate Mechanical Composition (in max values) MS Plate Mechanical Composition (in max values) MS Plate Mechanical Composition (in max values) MS Plate Mechanical Composition (in max values) MS Plate Mechanical Composition (in max values) MS Plate Mechanical Composition (in max values)
Tensile Strength Min, Mpa Yield Stress, Min, MPa Yield Stress, Min, MPa Yield Stress, Min, MPa Elongation at gauge length 5.65 v?o Bend Test
mm lt20 mm 20-40 mm gt40 mm min min
410 250 240 230 23 3t (t is 3 times thickness)
website https//shreejisteelcorp.com/
8
