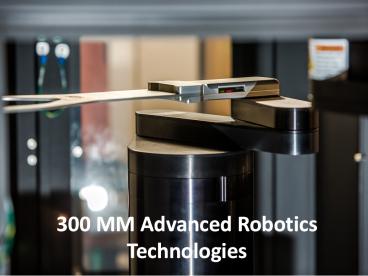

300 MM Advanced Robotics Technologies
2

• Kensington Labs is an advanced robotics
  technology leader committed to developing and
  manufacturing the highest quality, most reliable
  and cost-effective atmospheric wafer handling
  robots in the industry. Our technical innovation
  along with investment in capital infrastructure
  ensures that our customers receive products with
  superior performance, high reliability, and low
  cost of ownership.

3
Patented Edge Grip Technology

• Kensington Laboratories exclusive patented edge
  grip technology is a prime example of our
  technology leadership in automation systems.
  Other robots contact the wafer within the edge
  exclusion zone increasing the risk of failures
  caused by particle contamination.

4
Features

• Patented Edge Grip Technology
• Patented Automated Self-Teaching Sy s Continuous
  Rotation Capability
• State-Of-The-Art Motion Control
• Ca Machine Tool Quality Construction
• High-Resolution Optical Encoders on

5
Patented Self-teach System

• The advantage of our self-teaching system begins
  with its installation. An expert technician is
  required to teach other robotics systems, a
  time-consuming process taking many hours, perhaps
  days. With its built-in sensor, a Kensington
  robot is capable of seeing and measuring its
  environment and performing an automated self
  teach.

6
Integrated Transmissive Optical Sensor

• An eye-safe LED is integrated into the robot end
  effector and provides the robot with superior
  sensing capabilities. Allowing the robot to not
  only accurately map the location and presence of
  wafers in a cassette, but also to detect common
  errors, such as missing, doubled, or
  cross-slotted wafers.

7

• Integrated Transmissive Beam Wafer Mapping
• Advanced Wafer Cassette Error Detection
• Direct Drive Technology pable of Controlling
  Multiple Robots
• Off Center Pick And Place Capability
• Advanced Failsafe Wafer Handling Features All
  Axes
• Reduced Wear Z Axis Counter Balance
• Superior Linear Track Systems
• Wet Robot Options

8

• 300mm edge grip is designed with an integrated
  optical sensor to allow the robot to measure its
  environment and automatically perform a
  self-teach program. This is also available as an
  option for vacuum grip end effectors as well. If
  our standard wafer end effector do not meet your
  applications needs we can custom design one to
  precisely match your systems requirements.

9
CONTACT US

• Sales  Kensington Robots Stages, Newport PM500
  Stages, Spare Parts
• sales_at_kensingtonlabs.com
• Service - Kensington robot and stage repairs,
  Newport PM500 stage repairs
• service_at_kensingtonlabs.com

Kensington Laboratories, LLC 6200 Village
Parkway Dublin , CA 94568 Phone
510.324.0126 Fax [phone] www.kensingtonlabs.
com
Our Toll Free Number 1-888-977-7800
