Remote Monitoring Unit

1
(No Transcript)
2
Overview -

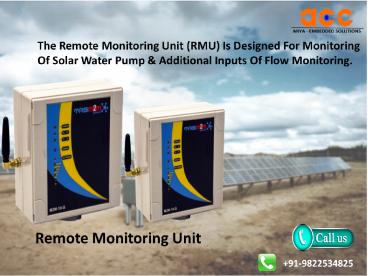

• The Remote Monitoring Unit (RMU) is designed
  primarily for monitoring of solar water pump
  additional inputs of flow monitoring.
• RMU Consist following things -
• 1. Communication Options To Suit Worldwide
  Locations
• 2. Solar Pump Monitoring
• 3. Web-Based Software For Internet

CONFIDENTIAL Copyright 2020 Arya Electronics And
Controls Pvt. Ltd
3
Description -

• The basic RMU has an RS-485 channel provided
  for the
• connection of digital controller or wired
  interconnection of multiple
• RMUs. Other digital I/O networks are
  obtainable for other status
• communications.
• Web-based software available over an Internet
  Server permits easy
• hassle free access to connected solar pump
  and flow data
• anywhere, anytime, and with e-mail, text
  messaging of alarm
• conditions that need your immediate
  attention.
• SD card slot is available to store data in case
  of unavailability of
• network. This will avoid the loss of data.
  Optional BT transfer is
• available to transfer data.

CONFIDENTIAL Copyright 2020 Arya Electronics And
Controls Pvt. Ltd
4
Technical Specification -

• 1. Enclosure MS Dimensions 302 x 232 x 90 mm
• 2. Input Power Supply 5V /12V DC
• 3. Operating Temperature 20C to 70C
• 4. Serial Input RS-485 2 Wire
• 5. Digital Input 2 Channel

CONFIDENTIAL Copyright 2020 Arya Electronics And
Controls Pvt. Ltd
5
Contact Us -
ARYA ELECTRONICS AND CONTROL PVT. LTD. S.NO.15,
GANESH NAGAR, DHAYARI, PUNE - 411041, INDIA.
Arya Electronics And Controls Pvt. Ltd.
91- 9822534825
contactus_at_aryaelectronicsandcontols.com
6
Thanks..!
Any Questions? You can find us at
contactus_at_aryaelectronicsandcontols.com
