Jaw Crusher

1

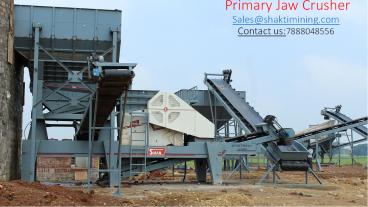

Primary Jaw CrusherSales_at_shaktimining.
comContact us7888048556
2

• ABOUT US
• SMAN Shakti Mining Equipments Private Limited is
  a renowned Manufacturer and Exporter of the
  widest range of Aggregate and minerals processing
  equipment mostly focusing on Crushing, Screening,
  Washing, Recycling and Material Handling
  Equipments covering a vast spectrum in Mining
  Construction Equipment field. It is based in
  India since 1986 with brand name as SMAN Contact
  us 91 7888048556 / 91 9922500565
• Website www.shaktimining.com

3

• What is jaw crusher ?
• A jaw crusher is a crushing machine designed
  considering a primary stage crushability for
  materials such as rock, mineral, ROM and building
  rubble. jaw crusher design focuses on compression
  type crushing with feed of material being
  received from the top of the crushing chamber
  that consists one side fix and other movable type
  cast manganese jaw liners, the moving jaw is
  fixed on a pitman which is connected to an
  eccentric shaft creating an elliptical motion
  while moving to and fro hence generating an
  inertia to perform crushing through compression.
  A jaw Crusher assembly basically consist of body,
  headstock, toggle support, pitman, bearing
  housing and flywheels.

4

• Jaw Crusher Features
• All four main bearings are of equal diameter
  larger size for optimum performance
• Single piece cast steel bearing housings offer
  high load carrying capacities ease of
  maintenance
• Forged steel, hardened Precision machined crank
  shaft
• Ring feeders fitted to lock flywheels with the
  shaft result in quick easy dismantling at the
  time of maintenance.
• Modular body design proves to be much more
  economical for recondition of the crusher even
  after long years of operation as compared to
  other traditional designs
• Easily replaceable machined bolted jaw stopper
  plates for maintenance free operation
• Dynamically balanced cast iron flywheels offer
  long bearing life
• Heavy duty cast steel Pitman
• High grade manganese steel cast Jaw Plates with
  overall machining offer excellent fltment wear
  Life
• The crushing chamber is ruggedly built for the
  hardest rock applications
• Modular non welded frame offers highest fatigue
  strength in all directions
