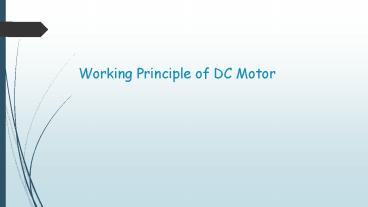

Title: Working Principle of DC Motor


1
Working Principle of DC Motor
2
Introduction to DC Motors
  • The DC motor is the motor which converts the
    direct current into the mechanical work. Works on
    the principle of Lorentz Law, which states that
    the current carrying conductor placed in a
    magnetic and electric field experience a force.
    And that force is the Lorentz force.

3
Construction of DC Motor
  • There are two main parts of the DC motor.
  • Armature or the rotating part.
  • Stator or the stationary part.
  • The armature coil consists of commutators and
    brushes.

4
  • The commutator converts AC into DC. Brushes
    transfer current from rotating part to stationary
    part. The armature is placed between the north
    and south poles of the electromagnet.

5
Working Principle of DC Motor
  • The basic working principle of the DC motor is
    that whenever a current carrying conductor places
    in the magnetic field, it experiences a
    mechanical force. Flemings left-hand rule and
    its magnitude decide the direction of this force.
    When armature winding is connected to a DC
    supply, an electric current sets up in the
    winding. Permanent magnets or field winding
    (electromagnetism) provides the magnetic field.
  • The current carrying armature conductors
    experience a force due to the magnetic field.
    The Commutator is made segmented to achieve
    unidirectional torque. Otherwise, the direction
    of force would have reversed every time when the
    direction of movement of the conductor is
    reversed in the magnetic field. This is how a DC
    motor works!
  • Read more
