Title: KINGSTAR Industry 4.0 Automation Software for Windows

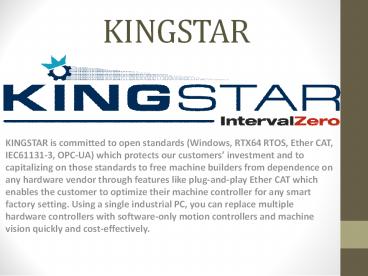

1
KINGSTAR
  • KINGSTAR is committed to open standards (Windows,
    RTX64 RTOS, Ether CAT, IEC61131-3, OPC-UA) which
    protects our customers investment and to
    capitalizing on those standards to free machine
    builders from dependence on any hardware vendor
    through features like plug-and-play Ether CAT
    which enables the customer to optimize their
    machine controller for any smart factory setting.
    Using a single industrial PC, you can replace
    multiple hardware controllers with software-only
    motion controllers and machine vision quickly and
    cost-effectively.

2
About Us
  • Mission
  • At IntervalZero our mission is to accelerate the
    worlds transition to the digital economy by
    making digital technologies more accessible and
    useful to companies and people.
  • Vision
  • To create PC-based machine automation software
    that embraces digital standards and moves
    machine-builders to develop controllers that can
    plug-n-play in the IoT and Industry 4.0 era. We
    believe that the first step in bridging the gap
    in the digital divide is to create open,
    standard, all-software solutions that replace
    proprietary, closed hardware solutions because
    software has the unique flexibility to share and
    act on information in new ways.

3
Products
  • KINGSTAR Fieldbus powered by EtherCAT
  • Plug-and-Play EtherCAT Master Features
  • Auto-Discovery Auto-Configuration deliver
    plug-and-play feature
  • Tools for configuration, diagnostic, analysis,
    and ESI import
  • Support all Class A features (FoE, EoE)
  • C/C API
  • Implemented as a process, allowing customers to
    debug their application without stopping the
    EtherCAT master
  • Multiple master instances
  • Hot connect
  • Cable redundancy
  • High-speed options down to 100 us time cycle
  • Motion and software PLC options
  • Multiple IDEs (Visual Studio, Qt, LabView)
  • Multiple applications (real-time and non
    real-time) can access the EtherCAT network at the
    same time
  • Real-time functionality delivered by IntervalZero
    RTX64

4
KINGSTAR Motion
  • Option of KINGSTAR Fieldbus. Design, develop, and
    integrate motion control applications with a
    software-only approach to machine automation and
    machine control.
  • Motion Features
  • PLC Open standard libraries
  • CAN Drive Profile
  • Independent Algorithm for each axis
  • Basic Motion Single-axis Point to Point motion
  • Absolute, relative, jog, and buffer moves
  • Synchronization
  • Caming, gearing, gantry, and group motion such as
    linear moves, 2D and 3D circular moves, and
    helical moves
  • Interpolation (Look ahead / Blended motion)
  • Continues velocity between buffer moves with
    transitions such as corners
  • Tools Tuning, scope
  • Multiple IDEs for motion control application
    development

5
KINGSTAR PLC
  • KINGSTAR provides a fully-featured and integrated
    software PLC based on an open and accessible RTOS
    RTX64 from IntervalZero. KINGSTAR PLC also
    includes add-on or third-party components for
    motion control and machine vision that are
    managed by a rich user interface for C
    programmers and non-developers alike.
  • KINGSTAR PLC Key Features
  • IEC61131-3 development environment and languages
  • Live debug with breakpoints
  • Real-time trace
  • Easy customization
  • C libraries
  • Graphical libraries
  • Embedded IDE for end-user
  • Incremental compilation and hot download
  • Simulator
  • OPC UA server
  • HMI options
  • Native HMI
  • Third-party HMI

6
KINGSTAR Vision
  • KINGSTAR Vision is a real-time GigE Vision
    stack. Develop vision-directed motion control
    using OpenCV (open-source libraries) on a Windows
    PC.
  • KINGSTAR Vision is a comprehensive collection of
    software tools for developing machine vision,
    image analysis and medical imaging software
    applications on GigE Vision and many other
    camera interfaces. It includes tools for every
    step in the process, from application
    feasibility, to prototyping, through to
    development and ultimately deployment.

7
KINGSTAR IoT Partnerships
  • KINGSTAR Industrial IoT for Windows PC adds IoT
    functionality to your machine control by
    capitalizing on the most open machine automation
    software platform.
  • Partnerships Deliver IoT Ready connectivity
  • Machine to machine connectivity
  • Machine to cloud (OPC UA, Modbus)
  • Microsoft Azure
  • Microsoft updates and security features
  • Framework for data sharing and
  • local data processing

8
Contact Us
Germany Office Flughafenstr. 118 90411 Nürnberg
Germany Phone 49 (0) 911 374
9535 Email info_at_kingstar.com
EMEA Headquarters 10 bis rue de Rivoli 06000
Nice France Phone 33 4 89 06 60
16 Email info_at_kingstar.com
  • CorporateHeadquarters
  • 400 Fifth AvenueFourth FloorWaltham, MA 02451
  • Phone1 781 209 2810Fax1 781 795
    0158Emailinfo_at_kingstar.com

India Office Office 302 Anisha Building, Anand
Park, Aundh, Pune 411 007, Maharashtra,
India Email info_at_kingstar.com
