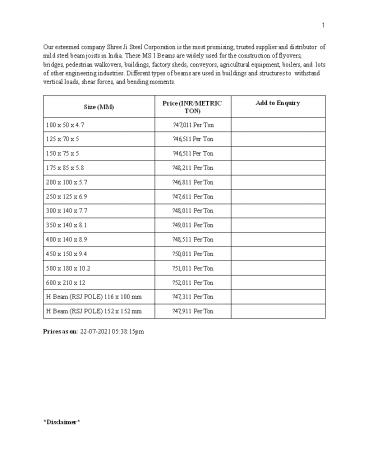

1 Our esteemed company Shree Ji Steel
Corporation is the most promising, trusted
supplier and distributor of mild steel beam
joists in India. These MS I Beams are widely used
for the construction of flyovers, bridges,
pedestrian walkovers, buildings, factory sheds,
conveyors, agricultural equipment, boilers, and
lots of other engineering industries. Different
types of beams are used in buildings and
structures to withstand vertical loads, shear
forces, and bending moments.
Size (MM) Price (INR/METRIC TON) Add to Enquiry
100 x 50 x 4.7 ?47,011 Per Ton
125 x 70 x 5 ?46,511 Per Ton
150 x 75 x 5 ?46,511 Per Ton
175 x 85 x 5.8 ?48, 211 Per Ton
200 x 100 x 5.7 ?46, 811 Per Ton
250 x 125 x 6.9 ?47, 611 Per Ton
300 x 140 x 7.7 ?48, 011 Per Ton
350 x 140 x 8.1 ?49, 011 Per Ton
400 x 140 x 8.9 ?48, 511 Per Ton
450 x 150 x 9.4 ?50, 011 Per Ton
500 x 180 x 10.2 ?51, 011 Per Ton
600 x 210 x 12 ?52, 011 Per Ton
H Beam (RSJ POLE) 116 x 100 mm ?47, 311 Per Ton
H Beam (RSJ POLE) 152 x 152 mm ?47, 911 Per Ton
Prices as on 22-07-2021 053815pm
Disclaimer
2

• 2
• Rates Subject to change as per the hourly market
  situation and will be valid only after formal
  discussion.
• Tax Goods and Service Tax _at_ 18 to be charged on
  the bill amount.
• Prices Raipur, Chhattisgarh / INDIA
• Dispatch Time 1 - 5 working days.
• Transportation to be charged extra.
• Minimum Order Quantity 25 Metric Ton.
• Packaging type bundles
• Payment Modes L/C (Letter of Credit), T/T (Bank
  Transfer), RTGS/NEFT, Cheque
• 100 payment to be made in advance.
• Products are subject to availability.
• Product Tags ms beam price, ms beam size, ms
  beam weight, ms i-beam weight chart, ms beam
  latest price, mild steel beam in Raipur, India,
  ms beam supplier in Raipur, top 30 ms beam dealer
  in India, ms beam images, ms beam size chart,
• Additional Information

PRODUCT NAME MS Beam
BRAND S J Shree JI
Material Grade IS 2062
Material Mild Steel
Place of Origin Raipur, Chhattisgarh
Minimum Order Quantity 25 Metric Ton
Application Agricultural equipment, Boilers, Conveyors, Engineering industries and many more, EOT Cranes, Factory Sheds, Ship Building, Truck-trailers
Features High Durability, High Strength, longer service life, Rigid Construction, Robustness, Rust resistance
3
3
MS Beam Weight MS Beam Weight MS Beam Weight MS Beam Weight MS Beam Weight
Size (in mm) Weight (in kg/m) Weight (in kg/feet) Weight (in kg/piece) in 12 meter Approx running meter length in 1 (one) ton
MS beam 125 x 70 x 5 13.400 4.084 160.800 75
MS beam 150 x 75 x 5 15.000 4.572 180.000 67
MS beam 175 x 85 x 5.8 19.600 5.974 235.200 51
MS beam 200 x 100 x 5.7 25.400 7.742 304.800 39
MS beam 250 x 125 x 6.9 37.300 11.369 447.600 27
MS beam 300 x 140 x 7.7 46.100 14.051 553.200 22
MS beam 350 x 140 x 8.1 52.400 15.971 628.800 19
MS beam 400 x 140 x 8.9 61.600 18.775 739.200 16
MS beam 450 x 150 x 9.4 72.400 22.067 868.800 14
MS beam 500 x 180 x 10.2 86.900 26.487 1042.800 12
MS beam 600 x 210 x 12 123.000 37.490 1476.000 8
H BEAM (RSJ POLE) 116x100 mm 8.500 23.000 276.000 3.6
H BEAM (RSJ POLE) 152x152 mm 7.900 47.400 374.460 2.67
4
4
Specification Specification Specification Specification
Rolling Tolerances of MS Beam Rolling Tolerances of MS Beam Rolling Tolerances of MS Beam Rolling Tolerances of MS Beam
Depth Tolerance Width of Flange Tolerance
Up to 200 mm 2.5 mm Up to 100 mm 2 mm
gt 200 to 400 mm 3.0 mm
Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length.
MS Beam Chemical Composition (in max values)
Carbon Manganese Max Sulphur Max Phosphorus Max Silicon Max Carbon Equivalent
0.23 1.50 0.045 0.045 0.40 0.42
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03
MS Beam Mechanical Composition (in max values)
Tensile Strength Min, Mpa Yield Stress, Min, MPa Yield Stress, Min, MPa Yield Stress, Min, MPa Elongation at gauge length 5.65 ???? Bend Test
mm lt 20 mm 20 - 40 mm gt 40 mm min min
410 250 240 230 23 3t(t is 3 times thickness)
