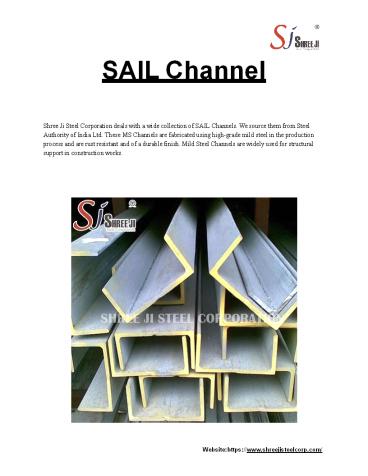

SAIL Channel
Shree Ji Steel Corporation deals with a wide
collection of SAIL Channels. We source them from
Steel Authority of India Ltd. These MS Channels
are fabricated using high-grade mild steel in the
production process and are rust resistant and of
a durable finish. Mild Steel Channels are widely
used for structural support in construction
works.
Websitehttps//www.shreejisteelcorp.com/
2
Product Name SAIL Channel
Brand SAIL
Material Grade IS 2062
Material Mild Steel
Place of Origin Kolkata/Durgapur
Minimum Order Quantity 16 Metric Ton
Application Construction Work
Features Structural Support in Construction
SAIL Channel Sizes and Weights SAIL Channel Sizes and Weights SAIL Channel Sizes and Weights
Size (in mm) Weight (in Kg/m) Weight (in Kg/feet)
75 x 40 6.800 2.073
100 x 50 9.200 2.804
125 x 65 12.800 3.901
150 x 75 16.400 4.500
150 x 76 17.700 5.394
175 x 75 19.200 5.852
200 x 75 22.200 6.766
200 x 76 24.300 7.406
225 x 80 24.000 7.315
225 x 90 26.000 7.925
250 x 82 34.200 10.424
300 x 90 35.900 10.942
400 x 100 49.500 15.087
Websitehttps//www.shreejisteelcorp.com/
3
Rolling Tolerances of SAIL Channel Rolling Tolerances of SAIL Channel Rolling Tolerances of SAIL Channel Rolling Tolerances of SAIL Channel
Depth Tolerance Width of flange Tolerance
Up to 200 mm 2.5 mm Up to 100 mm 2 mm
gt 200 to 400 mm 3.0 mm
Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length.
SAIL Channel Chemical Composition (in max values) SAIL Channel Chemical Composition (in max values) SAIL Channel Chemical Composition (in max values) SAIL Channel Chemical Composition (in max values) SAIL Channel Chemical Composition (in max values) SAIL Channel Chemical Composition (in max values) SAIL Channel Chemical Composition (in max values)
Carbon Manganese Max Sulphur Max Phosporous Max Silicon Max Carbon Equivalent
0.23 1.50 0.045 0.045 0.40 0.42
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03
Websitehttps//www.shreejisteelcorp.com/
4
SAIL Channel Mechanical Composition (in max values) SAIL Channel Mechanical Composition (in max values) SAIL Channel Mechanical Composition (in max values) SAIL Channel Mechanical Composition (in max values) SAIL Channel Mechanical Composition (in max values) SAIL Channel Mechanical Composition (in max values)
Tensile Strength Min, Mpa Yield Stress, Min, MPa Yield Stress, Min, MPa Yield Stress, Min, MPa Elongation at gauge length 5.65 v?o Bend Test
mm lt20 mm 20-40 mm gt40 mm min min
410 250 240 230 23 3t (t is 3 times thickness)
