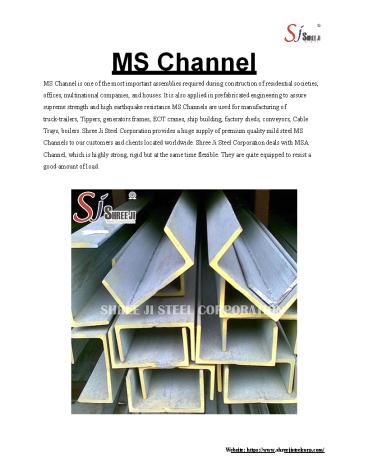

MS Channel

• MS Channel is one of the most important
  assemblies required during construction of
  residential societies, offices, multinational
  companies, and houses. It is also applied in
  prefabricated engineering to assure supreme
  strength and high earthquake resistance.MS
  Channels are used for manufacturing of
• truck-trailers, Tippers, generators frames, EOT
  cranes, ship building, factory sheds, conveyors,
  Cable Trays, boilers. Shree Ji Steel Corporation
  provides a huge supply of premium quality mild
  steel MS Channels to our customers and clients
  located worldwide. Shree Ji Steel Corporation
  deals with MSA Channel, which is highly strong,
  rigid but at the same time flexible. They are
  quite equipped to resist a good amount of load.

Website https//www.shreejisteelcorp.com/
2
Product Name MS Channel
Brand SJ SHREE JI
Type C
Material Grade IS 2062
Material Mild Steel
Place of Origin Kolkata/Durgapur
Minimum Order Quantity 16 Metric Ton
Application Construction Work
Usage Structural Support in Construction
MS Channel Sizes and Weights MS Channel Sizes and Weights MS Channel Sizes and Weights
Size (in mm) Weight (in Kg/m) Weight (in Kg/feet)
75 x 40 6.800 2.073
100 x 50 9.200 2.804
75 x 40 (light) 5.000 1.524
100 x 50 (light) 8.000 2.438
75 x 40 (super light) 4.000 1.219
100 x 50 (super light) 6.000 1.828
125 x 65 12.800 3.901
150 x 75 16.400 4.500
200 x 75 22.200 6.766
200 x 76 24.300 7.406
225 x 80 24.000 7.315
Website https//www.shreejisteelcorp.com/
3
MS Channel Sizes and Weights MS Channel Sizes and Weights MS Channel Sizes and Weights
225 x 90 26.000 7.925
250 x 82 34.200 10.424
300 x 90 35.900 10.942
400 x 100 49.500 15.087
Rolling Tolerances of MS Channel Rolling Tolerances of MS Channel Rolling Tolerances of MS Channel Rolling Tolerances of MS Channel
Depth Tolerance Width of flange Tolerance
Up to 200 mm 2.5 mm Up to 100 mm 2 mm
gt 200 to 400 mm 3.0 mm
Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length.
MS Channel Chemical Composition (in max values) MS Channel Chemical Composition (in max values) MS Channel Chemical Composition (in max values) MS Channel Chemical Composition (in max values) MS Channel Chemical Composition (in max values) MS Channel Chemical Composition (in max values) MS Channel Chemical Composition (in max values)
Carbon Manganese Max Sulphur Max Phosporous Max Silicon Max Carbon Equivalent
0.23 1.50 0.045 0.045 0.40 0.42
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03
Website https//www.shreejisteelcorp.com/
4
MS Channel Mechanical Composition (in max values) MS Channel Mechanical Composition (in max values) MS Channel Mechanical Composition (in max values) MS Channel Mechanical Composition (in max values) MS Channel Mechanical Composition (in max values) MS Channel Mechanical Composition (in max values)
Tensile Strength Min, Mpa Yield Stress, Min, MPa Yield Stress, Min, MPa Yield Stress, Min, MPa Elongation at gauge length 5.65 v?o Bend Test
mm lt20 mm 20-40 mm gt40 mm min min
410 250 240 230 23 3t (t is 3 times thickness)
