Multiple elements make up generators set

1

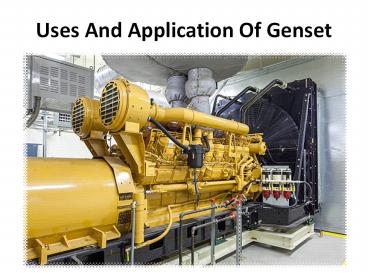

Uses And Application Of Genset
2

• Youll probably come across the term Genset
  when researching backup power alternatives for
  your business, house, or workplace. What is a
  Genset, exactly? What is it used for, exactly?
• Genset stands for generator sets for power in a
  nutshell. Its frequently confused with the more
  common phrase generator. It is a portable power
  source that generates electricity through the use
  of a motor.

3
What Is The Purpose of a Genset?

• Electricity is necessary for modern society to
  function. Businesses and families require a
  consistent stream of power to run everything from
  Wi-Fi and communications to lighting and climate
  control.
• In the event of brownouts or power outages,
  generator sets can provide an extra layer of
  protection. Standby generators can keep vital
  systems functioning at medical facilities,
  businesses, and homes if utility power is lost.
• In off-grid locations, gensets can also provide a
  self-contained power supply. Construction sites,
  campgrounds, rural places, and even deep
  underground mines are among them. They allow
  people to use their power to construct, explore,
  and live off the grid.
• Electric generator sets for power come in a
  variety of shapes and sizes. They all have
  comparable components, require some form of fuel,
  and are mounted on a base frame. However, there
  are some significant variances.

4
What Exactly Is A Genset, and How Does It
Function?

• Electrical generators set work in the same way as
  automobiles do. An alternator and a main mover
  are included (engine).
• The engine transforms chemical energy from
  gasoline, diesel, biogas, or natural gas into
  mechanical energy.
• The alternator rotor is spun by mechanical energy
  to generate electrical energy.
• A rotor plus a stator make up an alternator. A
  magnetic field between the rotor and the stator
  provides electricity while the rotor spins
  (electromagnetic induction).
• When the stator voltage is connected to a load, a
  stable electrical current is created.
• Many homes and companies find gensets extremely
  useful since they can be used right away when
  power is generated. Any power outages are
  effectively eliminated with the use of gensets.

5
Whats The Difference Between AC and DC
Generators?

• Electromagnetic induction is used by all
  generators, although differing arrangements can
  produce two types of electrical energy
  alternating current (AC) and direct current (DC).
• The AC type makes up the vast majority
  of generator sets. However, its important to
  understand the differences.
• Alternating current, as its name implies,
  reverses direction. Hundreds of times every
  second, it oscillates back and forth. Because AC
  power can travel at a high voltage, it can be
  used for long-distance grid delivery. For
  smaller-scale use, a transformer steps down the
  voltage. Small motors, domestic appliances,
  computers, and office equipment are all powered
  by AC generators.
• At lower voltages, direct current only flows in
  one direction. From the generator to the final
  destination, everything is in order. Large-scale
  electric motors, banks of batteries and solar
  cells, and LED lights are all powered by DC
  generators.

6
What Are The Elements That Make Up A Genset?

• The following items are commonly seen in
  generator sets
• Engine/motor
• Its the main genset component, and it runs on
  gasoline. Engines developed to fulfill demand and
  work under harsh situations are known as good
  engines (i.e., bad weather).
• Alternator
• This component transfers mechanical energy into
  electrical energy without it, no power exists.
• A panel of control
• It is the gensets brain, controlling and
  regulating all of the other components.
• System of fuel
• The storage tanks and lines that deliver fuel to
  the engine make up this component.

7

• Regulator of voltage
• It regulates the gensets output voltage and
  converts an A/C current to a D/C current.
• Housing/base frame
• The generator is supported by the base frame,
  which also holds the components together. It may
  or may not hold the petrol tank and serves as an
  anti-vibration and grounding system. It might be
  placed on wheels to make it more portable.
• Battery or a pull-cord mechanism
• A portable generators combustion process
  requires an initial spark. It is normally
  accomplished by a pull cord system (similar to a
  lawnmower).
• A manual or automatic transfer switch is
  available.
• The transfer switch switches electricity between
  the main (utility) and auxiliary sources (the
  generator). It ensures a steady supply of
  electricity and avoids harmful outages.
• Enclosure or baffle box
• This container, frequently composed of stainless
  steel, lowers noise, prevents corrosion, and
  allows airflow to cool the engine.
• Generators dont demand a lot of attention, but
  its crucial to understand how they work. Youll
  be able to do preventative and general
  maintenance as needed, as well as learn how to
  obtain replacement parts this way.

8
What Are The Different Kinds of Gensets?

• Generator sets for power exist in a variety of
  sizes and can run on a variety of fuels. The
  following are the various generator fuel systems,
  along with their benefits and drawbacks.
• Generators that run on gasoline
• The fuel is widely available gasoline generators
  are the most preferred option. Gas-powered
  generators are relatively inexpensive, and
  theyre extremely portable.
• On the other hand, a gas generator has a short
  lifespan and is inefficient in fuel consumption.
  Gasoline will last roughly a year in storage.
  However, it is highly combustible, which could
  pose a risk in some situations.

9

• Generators that run on diesel
• Engines that run on diesel are more powerful than
  those that run on gasoline. Diesel fuel is also
  less flammable than gasoline, and it is widely
  available. Diesel generators can last a long
  period if properly maintained.
• The fact that diesel fuel only lasts around two
  years and that frequent use is costly are major
  disadvantages. Diesel engines produce a great
  deal of pollution.
• Generators for biodiesel
• Biodiesel is a fuel made from diesel and other
  biological sources such as animal fat or
  vegetable oil. Its more environmentally friendly
  because it emits fewer petroleum emissions,
  resulting in less waste and a smaller carbon
  footprint.
• The noise levels connected with biodiesel
  engines, on the other hand, are a significant
  disadvantage.

10
Conclusion

• Having a generator set on hand in a power outage
  can save your life. Even in non-life-or-death
  situations, a Genset can ensure uninterrupted
  operations.
