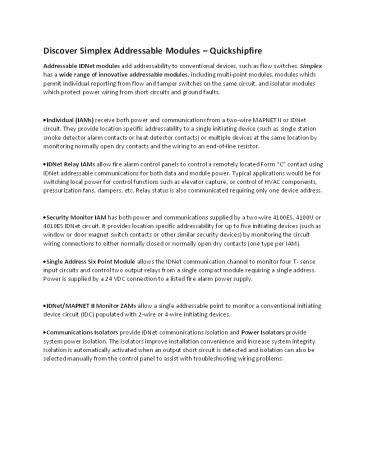

Discover Simplex Addressable Modules – Quickshipfire

1

• Discover Simplex Addressable Modules
  Quickshipfire
• Addressable IDNet modules add addressability to
  conventional devices, such as flow switches.
  Simplex has a wide range of innovative
  addressable modules, including multi-point
  modules, modules which permit individual
  reporting from flow and tamper switches on the
  same circuit, and isolator modules which protect
  power wiring from short circuits and ground
  faults.
• Individual (IAMs) receive both power and
  communications from a two-wire MAPNET II or IDNet
  circuit. They provide location specific
  addressability to a single initiating device
  (such as single station smoke detector alarm
  contacts or heat detector contacts) or multiple
  devices at the same location by monitoring
  normally open dry contacts and the wiring to an
  end-of-line resistor.
• IDNet Relay IAMs allow fire alarm control panels
  to control a remotely located Form C contact
  using IDNet addressable communications for both
  data and module power. Typical applications would
  be for switching local power for control
  functions such as elevator capture, or control of
  HVAC components, pressurization fans, dampers,
  etc. Relay status is also communicated requiring
  only one device address.
• Security Monitor IAM has both power and
  communications supplied by a two-wire 4100ES,
  4100U or 4010ES IDNet circuit. It provides
  location specific addressability for up to five
  initiating devices (such as window or door magnet
  switch contacts or other similar security
  devices) by monitoring the circuit wiring
  connections to either normally closed or normally
  open dry contacts (one type per IAM).
• Single Address Six Point Module allows the IDNet
  communication channel to monitor four T- sense
  input circuits and control two output relays from
  a single compact module requiring a single
  address. Power is supplied by a 24 VDC connection
  to a listed fire alarm power supply.
• IDNet/MAPNET II Monitor ZAMs allow a single
  addressable point to monitor a conventional
  initiating device circuit (IDC) populated with
  2-wire or 4-wire initiating devices.
• Communications Isolators provide IDNet
  communications isolation and Power Isolators
  provide system power isolation. The isolators
  improve installation convenience and increase
  system integrity. Isolation is automatically
  activated when an output short circuit is
  detected and isolation can also be selected
  manually from the control panel to assist with
  troubleshooting wiring problems.

2
If you are thinking of changing or upgrading your
current fire alarm system to something more
reliable (yet still cost effective), consider a
new addressable fire alarm system from
Quickshipfire. No matter which commercial fire
alarm system you choose, Quickshipfire has the
all kinds of fire alarm parts and fire alarm
batteries youll need. https//quickshipfire.com/
